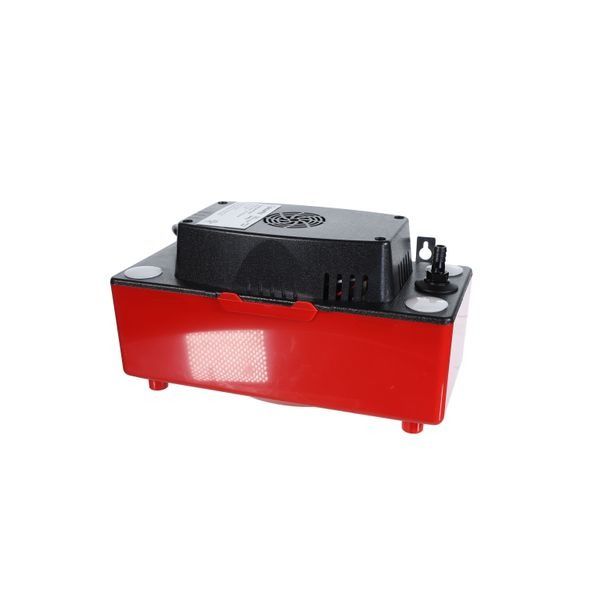

DiversiTech CP-16-230 Asurity® PRO Series 230V Condensate Pump, 16 ft Lift
DiversiTech CP-16-230 Asurity® PRO Series 230V Condensate Pump, 16 ft Lift
The DiversiTech PRO CP-16 is a reliable 230-volt condensate pump designed for general HVAC and refrigeration applications. It is commonly used to remove condensate from air conditioners, high-efficiency furnaces, and other ducted HVAC systems where gravity drainage is not possible.
This pump delivers a maximum lift of up to 16 feet and a flow rate of up to 72 gallons per hour, making it suitable for both residential and light commercial installations. It can safely handle condensate temperatures up to 160°F, ensuring dependable operation even in demanding environments.
The PRO CP-16 features a compact tank with a 1/2-gallon capacity and includes four inlet ports for flexible installation. Sturdy metal hang tabs allow for secure mounting, while the removable check valve helps prevent backflow and simplifies maintenance. The unit is UL listed and comes factory-equipped with a NEMA 6-15 plug for easy 230-volt connection.
| Category | Specification | Category | Specification |
|---|---|---|---|
| Model | PRO CP-16 | Application | General purpose condensate pump |
| System Type | Ducted | UL Listed | Yes |
| Voltage | 230 VAC | Frequency | 60 Hz |
| Amperage | 1 Amp | Motor Output | 1/50 HP |
| Plug Type | NEMA 6-15 | Color | Black / Red |
| Maximum Lift Height | 16 ft | Maximum Flow Rate | 72 GPH |
| Flow Rate @ 10 ft Lift | 48 GPH | Max Condensate Temp | 160°F |
| Tank Capacity | 0.5 gallon | Number of Inlets | 4 |
| Discharge Line Size | 3/8 inch | Check Valve | Removable |
| Self-Cleaning | No | Mounting | Metal hang tabs |
| Width | 6.5 inches | Depth | 12.25 inches |
| Height | 7.5 inches | Weight | 5.35 lbs |
| UPC | 0095247173013 | Plug Configuration | NEMA 6-15 |
| Package Quantity | 1 Item |
|---|---|
| Item Returns | This item can be returned |
