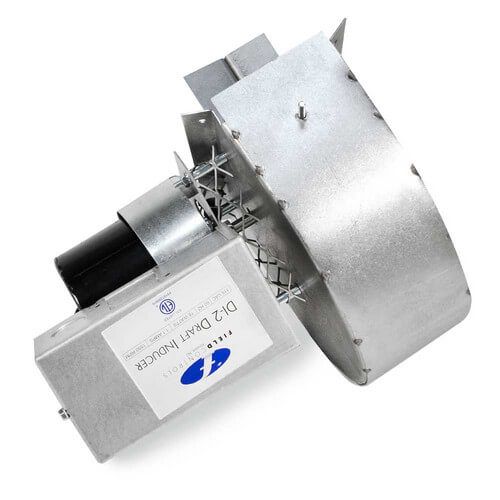

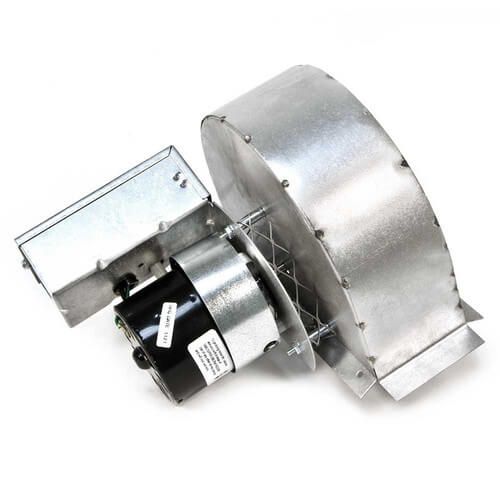

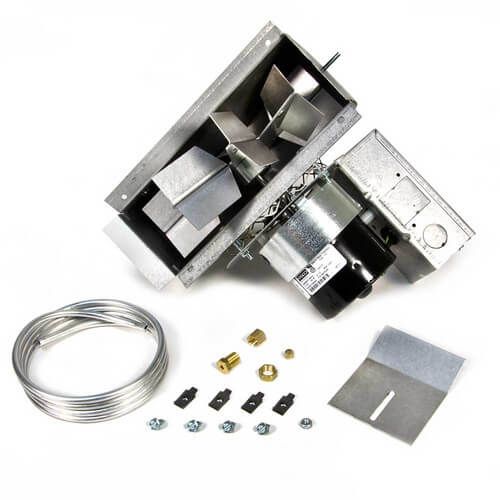

Field Controls DI-2 - DI-2 Draft Inducer for 5-8" Pipe
DI Paks are available for 24 volt and millivolt applications and include all controls necessary.
How Draft Inducers Work
1. Thermostat calls for heat.
2. Control Kit (A) energizes Draft Inducer (B).
3. Draft Inducer forces air flow in chimney, creating negative pressure in burner chamber.
4. Once negative pressure (draft) is established, the Control Kit allows the burner (C) to start.
5. When the thermostat is satisfied, the Control Kit shuts down the burner and the Draft Inducer.
When To Use a Draft Inducer
Long horizontal vent runs
Undersized vent pipes
Short chimneys
Outside exposed chimney
Hertz: 60
RPM: 1550
Voltage: 115V
Amperage: 1.1
Wattage: 78
| Package Quantity | 1 Item |
|---|---|
