Resideo DP2030A1004 - 24 Vac 2 pole Definite Purpose Contactor (30 A)

Brand:
Reviews (0)
SKU
DP2030A1004
Resideo DP2030A1004 - 24 Vac 2 pole Definite Purpose Contactor (30 A)
Resideo DP2030A1004 - 24 Vac 2 pole Definite Purpose Contactor (30 A)
Resideo DP2030A1004 - 24 Vac 2 pole Definite Purpose Contactor (30 A)
Resideo DP2030A1004 - 24 Vac 2 pole Definite Purpose Contactor (30 A)
Resideo DP2030A1004 - 24 Vac 2 pole Definite Purpose Contactor (30 A)
Resideo DP2030A1004 - 24 Vac 2 pole Definite Purpose Contactor (30 A)

Resideo DP2030A1004 - 24 Vac 2 pole Definite Purpose Contactor (30 A)

SKU
DP2030A1004
Brand:
Reviews (0)
$21.59
Out of stock

(special order is available)

SPECIAL REQUEST

Important Notice:

This is a special order item and will ship with a minimum lead time of 14 days.

Special order items are non-returnable and cannot be canceled once placed.

Please note: Pricing is not final and will be confirmed after we contact you.

Overview:
These electromagnetically-operated Definite Purpose Contactors provide switching for starting induction motors.

Features:
Silver cadmium oxide contacts provide long life under demanding duty cycles.
Low profile design allows for more wiring room.

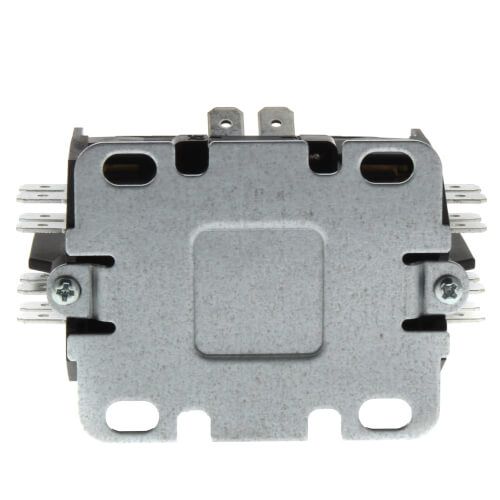

Multiple mounting holes and slots for convenient, interchangeable mounting with most competitive devices.
Electrical Connections (main): #10 combination head screws
Contact Connections (coil): double 1/4 in. quick-connects
Dimensions (in.): 3.25" high x 3.63" wide x 3.8" deep

Application: Economy Definite Purpose Contactor
Poles: 2
Amperage: 30
Voltage: 24v
Temperature Range (F): -4°F to 149°F
Coil Ratings: 24v
