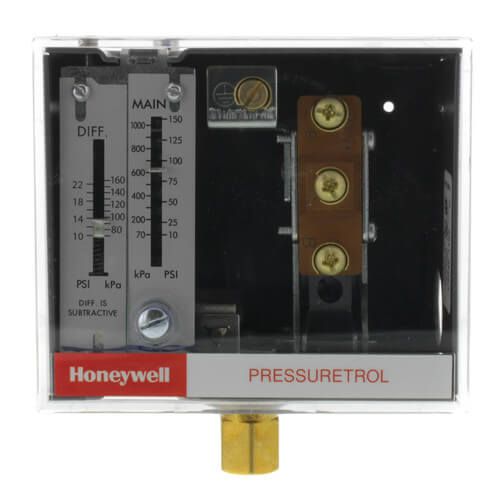

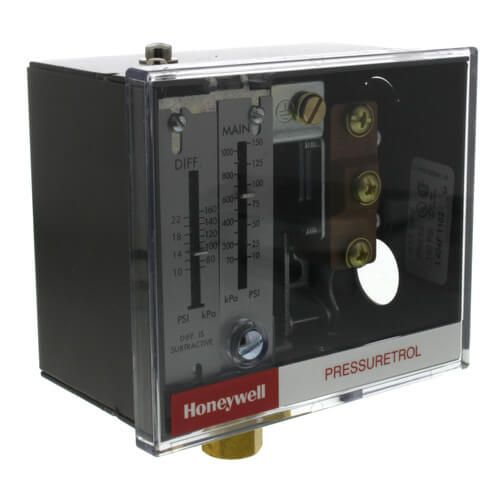

Honeywelll L404F1102 - Pressuretrol Controller w/ Auto recycle (10 psi to 150 psi)
Honeywelll L404F1102 - Pressuretrol Controller w/ Auto recycle (10 psi to 150 psi)
Pressure and Limit Controller
Type Adjustable Subtractive Differential
Operator Type Diaphragm
Operating Pressure Rating 10 to 150 PSI
Maximum Line Pressure Rating 225 PSI
Differential Pressure Rating 10 to 22 PSI
Pressure Media Steam, Air, Gas, Fluid
Contact Configuration SPDT 2 Circuit
Contact Rating 8 Amp (Full Load), 48 Amp (Locked Rotor), 10 Amp (Resistive) at 120 Volt AC, 5.1 Amp (Full Load), 30.6 Amp (Locked Rotor), 5 Amp (Resistive) at 240 Volt AC
Connection Type 1/4 Inch Female Threaded
Application Steam/Air/Non-Combustible Gas or Non-Corrosive Fluid Limit Control
Approval UL, CSA
Overall Dimension 4-1/2 Inch Width x 2-3/4 Inch Depth x 4-31/32 Inch Height
Cover Material Clear Plastic
Finish Gray
Operating Temperature -35 to 150 Deg F
Switch Operation Auto Recycle, Snap Action, Make R-W/Break R-B On Pressure Rise
Mounting 1/4 Inch Female Threaded/Surface Mount
| Package Quantity | 1 Item |
|---|---|
| Item Returns | This item can be returned |
