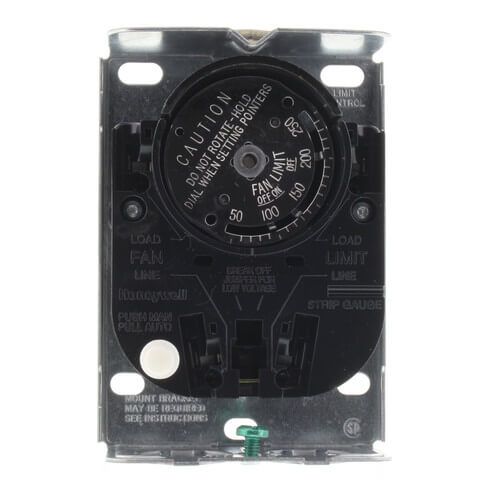

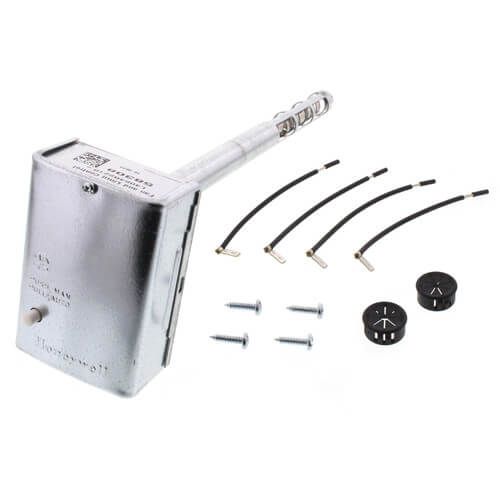

Fan and Limit Controller

Type 11-1/2 Inch Length Element Insertion, Surface/Universal Mounting Bracket

Temperature Range -40 to 190 Deg F

Maximum Temperature Rating 190 Deg F (Switch), 350 Deg F (Element), 100 to 250 Deg F (High Limit), 65 to 215 Deg F (Fan ON), 50 to 200 Deg F (Fan OFF), 200 Deg F (High Limit Stop), 125 Deg F (Fan ON Stop), 100 Deg F (Fan OFF Stop)

Contact Rating 14 Amp at 120 Volt AC/7 Amp at 240 Volt AC Fan (Full Load), 8 Amp at 120 Volt AC/4 Amp at 240 Volt AC Limit (Full Load), 84 Amp at 120 Volt AC/42 Amp at 240 Volt AC Fan (Locked Rotor), 48 Amp at 120 Volt AC/24 Amp at 240 Volt AC Limit (Locked Rotor), 0.25 Amp at 0.25 to 12 Volt AC/2 Amp at 24 Volt AC (Pilot Duty)

Contact Configuration Fan Switch Makes, High Limit Switch Breaks on Temperature Rise

Connection Type Auxiliary Screw Terminal

Application Forced Warm Air Heating System

Approval UL, CSA

Overall Dimension 3 Inch Width x 1-19/32 Inch Depth x 4-9/32 Inch Height

Differential Temperature Rating 25 Deg F (High Limit)

Includes Manual and Automatic Fan On/Off Setting, Breakaway Jumper
