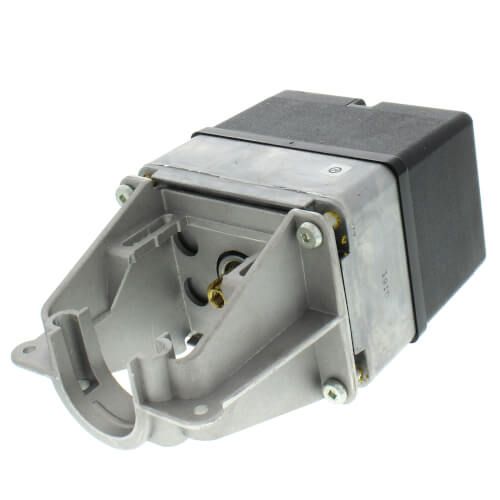

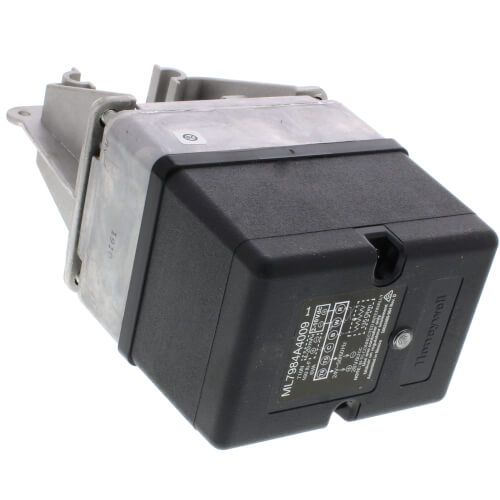

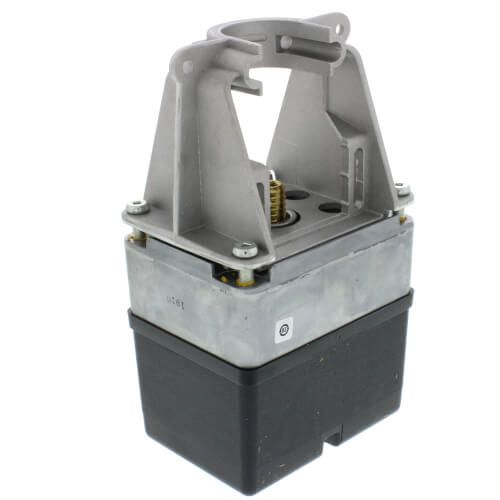

Honeywelll ML7984A4009 - Linear Stroke Valve Actuator 160 lbf

Brand:
Reviews (0)
SKU
ML7984A4009
Honeywelll ML7984A4009 - Linear Stroke Valve Actuator 160 lbf
Honeywelll ML7984A4009 - Linear Stroke Valve Actuator 160 lbf
Honeywelll ML7984A4009 - Linear Stroke Valve Actuator 160 lbf
Honeywelll ML7984A4009 - Linear Stroke Valve Actuator 160 lbf
Honeywelll ML7984A4009 - Linear Stroke Valve Actuator 160 lbf
Honeywelll ML7984A4009 - Linear Stroke Valve Actuator 160 lbf

Honeywelll ML7984A4009 - Linear Stroke Valve Actuator 160 lbf

SKU
ML7984A4009
Brand:
Reviews (0)
$335.38
Out of stock

(special order is available)

SPECIAL REQUEST

Important Notice:

This is a special order item and will ship with a minimum lead time of 14 days.

Special order items are non-returnable and cannot be canceled once placed.

Please note: Pricing is not final and will be confirmed after we contact you.

Valve Actuator
Type SPDT, Direct Coupled, Self-Contained/Adjusting
Operation Type Non-Spring Return
Voltage Rating 24 Volt AC
Maximum AC Voltage 24 Volt
Frequency Rating 50/60 Hertz
Power Rating 6 Volt Amp (Driving), 12 Volt Amp (Holding)
Torque 160 Inch-Pound
Enclosure NEMA 3R, IP54
Size 4 Inch Width x 3-3/16 Inch Depth x 6-13/16 Inch Height
Body Material Aluminum (Base/Yoke)
Operating Temperature 32 to 130 Deg F (Ambient)
Application HVAC System
Approval CE
Connection Type Screw Terminal
Control Signal Range 2 to 10 Volt DC, 4 to 20 Milliamp
Timing 63 Second
Includes Screw Terminal
