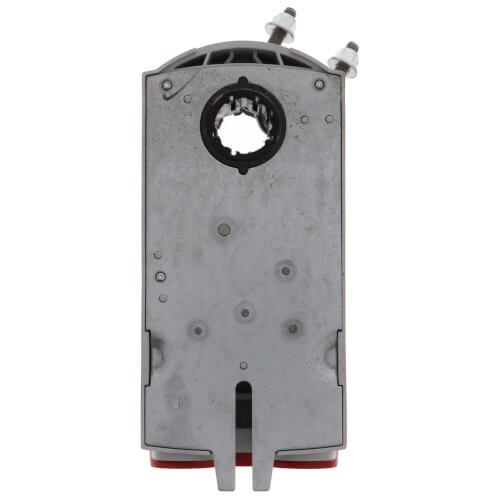

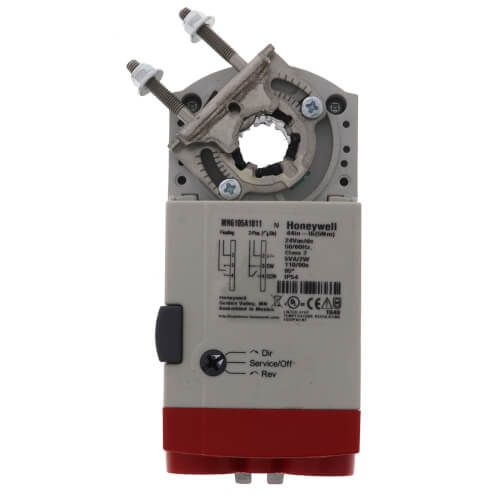

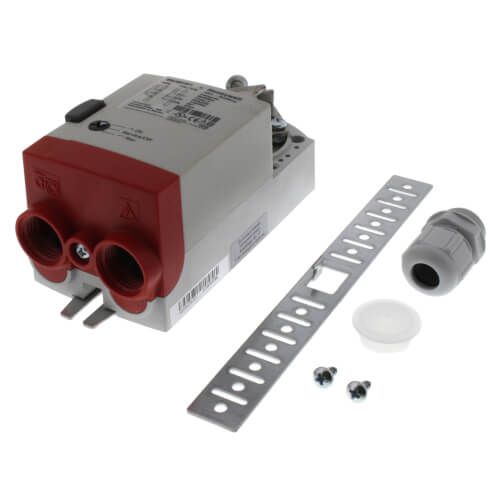

Honeywelll MN6105A1011 - Non-Spring Return Floating Actuator, 44 lb-in

Brand:
Reviews (0)
SKU
MN6105A1011
Honeywelll MN6105A1011 - Non-Spring Return Floating Actuator, 44 lb-in
Honeywelll MN6105A1011 - Non-Spring Return Floating Actuator, 44 lb-in
Honeywelll MN6105A1011 - Non-Spring Return Floating Actuator, 44 lb-in
Honeywelll MN6105A1011 - Non-Spring Return Floating Actuator, 44 lb-in
Honeywelll MN6105A1011 - Non-Spring Return Floating Actuator, 44 lb-in
Honeywelll MN6105A1011 - Non-Spring Return Floating Actuator, 44 lb-in

Honeywelll MN6105A1011 - Non-Spring Return Floating Actuator, 44 lb-in

SKU
MN6105A1011
Brand:
Reviews (0)
$159.96
Out of stock

(special order is available)

SPECIAL REQUEST

Important Notice:

This is a special order item and will ship with a minimum lead time of 14 days.

Special order items are non-returnable and cannot be canceled once placed.

Please note: Pricing is not final and will be confirmed after we contact you.

Damper Actuator
Type ON/OFF, SPDT, Direct Coupled, Floating
Operation Type Non-Spring Return, Declutch Mechanism
Voltage Rating 24 Volt AC/DC
Maximum AC Voltage 24 Volt
Maximum DC Voltage 24 Volt
Frequency Rating 50/60 Hertz
Power Rating 5 Volt Amp (Driving)
Torque 44 Inch-Pound
Angle of Rotation 95 Degree
Enclosure NEMA 2, IP54
Size 2.6 Inch Width x 2.44 Inch Depth x 5.23 Inch Height
Shaft Diameter 3/8 to 5/8 Inch
Body Material Plenum Rated Plastic
Operating Temperature -5 to 140 Deg F (Ambient)
Application HVAC System
Approval UL 873, C-Tick, CE
Connection Type Enclosed Screw Terminal Strip
Timing 95 Second
