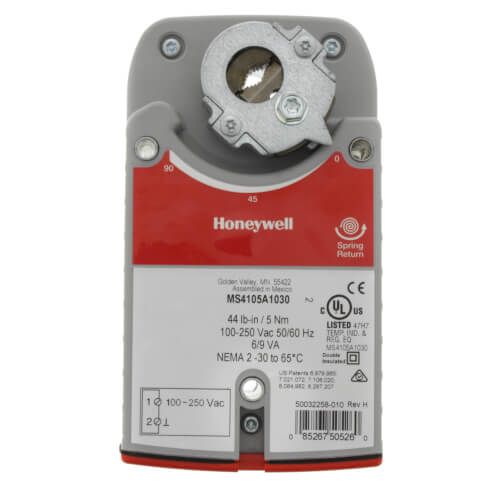

Honeywell MS4105A1030 - Two Position Damper Actuator w/ Spring Return (44 lb-in)
Honeywell MS4105A1030 - Two Position Damper Actuator w/ Spring Return (44 lb-in)
Damper Actuator
Type SPST, 2-Position, Direct Coupled
Operation Type Spring Return
Voltage Rating 100 to 250 Volt AC
Minimum AC Voltage 100 Volt
Maximum AC Voltage 250 Volt
Frequency Rating 50/60 Hertz
Power Rating 6/9 Volt Amp (Driving)
Torque 44 Inch-Pound
Angle of Rotation 95 Degree
Enclosure NEMA 2, IP54
Size 3-55/84 Inch Width x 3-5/32 Inch Depth x 6-81/54 Inch Height
Shaft Diameter 3/8 to 5/8 Inch
Body Material Plenum Rated Plastic
Operating Temperature -22 to 149 Deg F (Ambient)
Application HVAC System
Approval UL 873, CUL C22.2, CE, C-Tick N314
Connection Type Screw Terminal

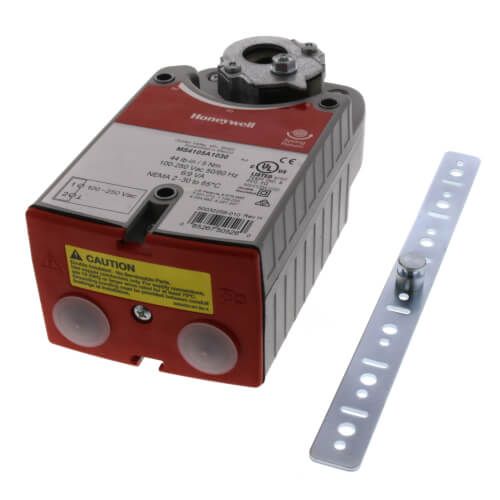

Includes Mounting Bracket, Self Centering Shaft Adapter
| Package Quantity | 1 Item |
|---|---|
| Item Returns | This item can be returned |
Write Your Own Review
