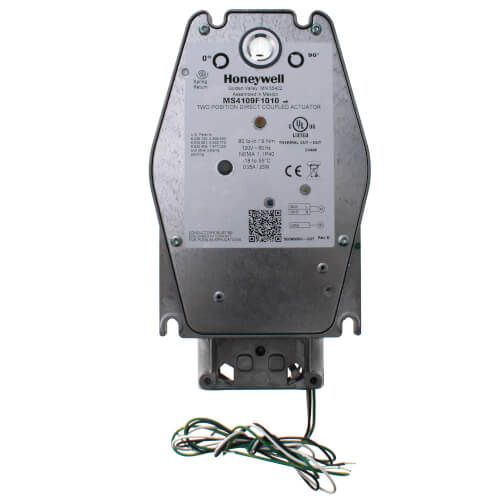

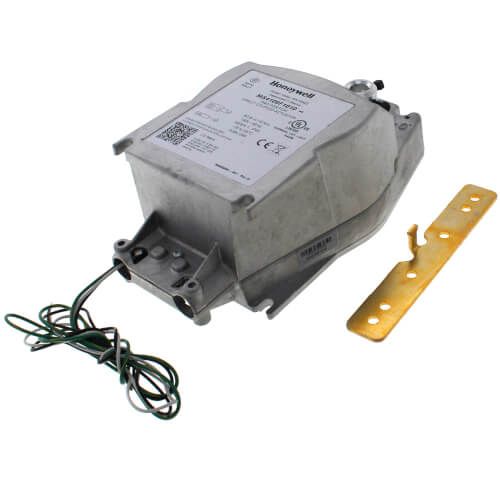

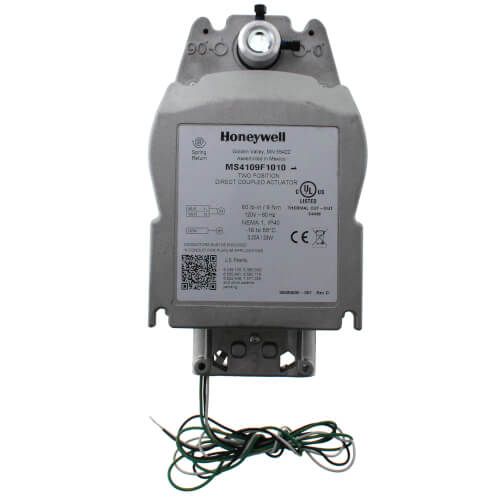

Honeywell MS4109F1010 - Fast Acting, Two-Position Spring Return Actuator (CW & CCW, 120V, 80 lb-in)

Brand:
Reviews (0)
SKU
MS4109F1010
Honeywell MS4109F1010 - Fast Acting, Two-Position Spring Return Actuator (CW & CCW, 120V, 80 lb-in)
Honeywell MS4109F1010 - Fast Acting, Two-Position Spring Return Actuator (CW & CCW, 120V, 80 lb-in)
Honeywell MS4109F1010 - Fast Acting, Two-Position Spring Return Actuator (CW & CCW, 120V, 80 lb-in)
Honeywell MS4109F1010 - Fast Acting, Two-Position Spring Return Actuator (CW & CCW, 120V, 80 lb-in)
Honeywell MS4109F1010 - Fast Acting, Two-Position Spring Return Actuator (CW & CCW, 120V, 80 lb-in)
Honeywell MS4109F1010 - Fast Acting, Two-Position Spring Return Actuator (CW & CCW, 120V, 80 lb-in)

Honeywell MS4109F1010 - Fast Acting, Two-Position Spring Return Actuator (CW & CCW, 120V, 80 lb-in)

SKU
MS4109F1010
Brand:
Reviews (0)
$445.29
Out of stock

(special order is available)

SPECIAL REQUEST

Important Notice:

This is a special order item and will ship with a minimum lead time of 14 days.

Special order items are non-returnable and cannot be canceled once placed.

Please note: Pricing is not final and will be confirmed after we contact you.

Damper Actuator
Type SPST, Direct Coupled, 2-Position, Fast Acting
Operation Type Spring Return
Voltage Rating 120 Volt AC
Maximum AC Voltage 120 Volt
Current Rating 0.25 Amp (Driving), 0.13 Amp (Holding)
Frequency Rating 60 Hertz
Power Rating 23 Watt (Driving), 7 Watt (Holding)
Torque 80 Inch-Pound
Angle of Rotation 95 Degree
Enclosure NEMA 1, IP40
Size 5.13 Inch Width x 3.32 Inch Depth x 8.9 Inch Height
Shaft Diameter 1/2 Inch
Supply Connection Size 32 Inch Color Coded Lead
Body Material Aluminum
Operating Temperature 0 to 130 Deg F (Ambient)
Application Fire and Smoke
Approval UL 60730, CUL C22.2, C-Tick
Timing 15 Second
