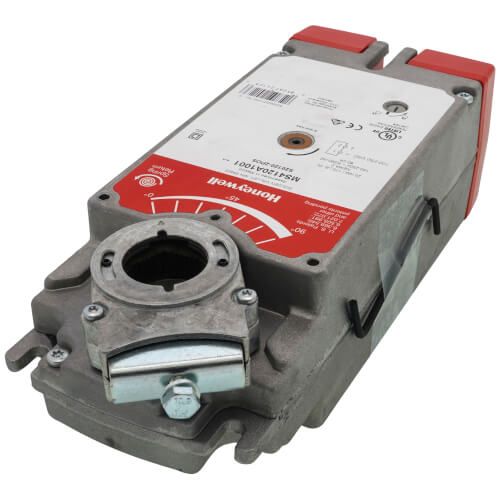

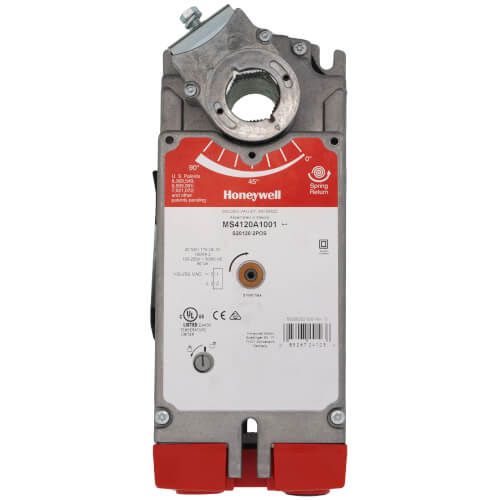

Honeywell MS4120A1001 - Two Position Damper Actuator w/ Spring Return (175 lb-in)

Brand:
Reviews (0)
SKU
MS4120A1001
Honeywell MS4120A1001 - Two Position Damper Actuator w/ Spring Return (175 lb-in)
Honeywell MS4120A1001 - Two Position Damper Actuator w/ Spring Return (175 lb-in)
Honeywell MS4120A1001 - Two Position Damper Actuator w/ Spring Return (175 lb-in)
Honeywell MS4120A1001 - Two Position Damper Actuator w/ Spring Return (175 lb-in)

Honeywell MS4120A1001 - Two Position Damper Actuator w/ Spring Return (175 lb-in)

SKU
MS4120A1001
Brand:
Reviews (0)
$469.93
Out of stock

(special order is available)

SPECIAL REQUEST

Important Notice:

This is a special order item and will ship with a minimum lead time of 14 days.

Special order items are non-returnable and cannot be canceled once placed.

Please note: Pricing is not final and will be confirmed after we contact you.

Damper Actuator
Type SPST, Direct Coupled, 2-Position
Operation Type Spring Return, Manual Crank
Voltage Rating 100 to 250 Volt AC
Minimum AC Voltage 100 Volt
Maximum AC Voltage 250 Volt
Frequency Rating 50/60 Hertz
Power Rating 60 Volt Amp (Driving), 13 Volt Amp (Holding)
Torque 175 Inch-Pound
Angle of Rotation 95 Degree
Enclosure NEMA 2
Size 3.94 Inch Width x 2.95 Inch Depth x 9.72 Inch Height
Shaft Diameter 3/8 to 1.06 Inch
Body Material Aluminum
Operating Temperature -40 to 140 Deg F (Ambient)
Application HVAC System
Approval UL 873, CUL C22.2, CE, C-Tick
Connection Type Enclosed Screw Terminal Strip
Timing 45 Second
