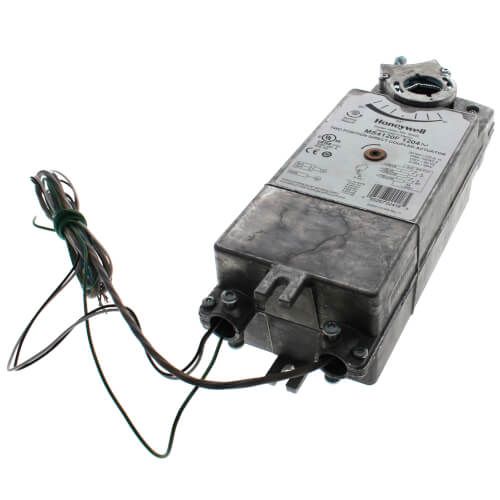

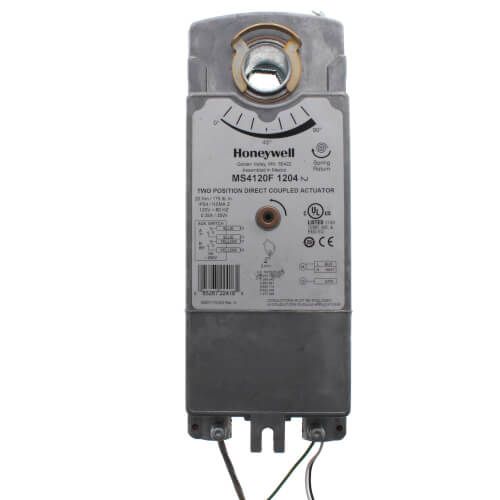

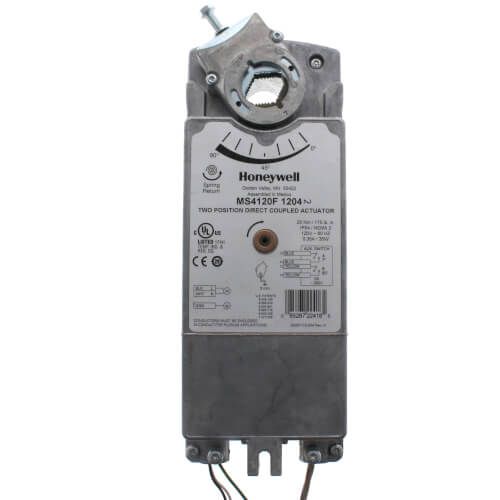

Honeywell MS4120F1204 - Two Position Damper Actuator w/ Spring Return and Aux. Switches for Fire and Smoke Applications (175 lb-in)

Brand:
Reviews (0)
SKU
MS4120F1204
Honeywell MS4120F1204 - Two Position Damper Actuator w/ Spring Return and Aux. Switches for Fire and Smoke Applications (175 lb-in)
Honeywell MS4120F1204 - Two Position Damper Actuator w/ Spring Return and Aux. Switches for Fire and Smoke Applications (175 lb-in)
Honeywell MS4120F1204 - Two Position Damper Actuator w/ Spring Return and Aux. Switches for Fire and Smoke Applications (175 lb-in)
Honeywell MS4120F1204 - Two Position Damper Actuator w/ Spring Return and Aux. Switches for Fire and Smoke Applications (175 lb-in)
Honeywell MS4120F1204 - Two Position Damper Actuator w/ Spring Return and Aux. Switches for Fire and Smoke Applications (175 lb-in)
Honeywell MS4120F1204 - Two Position Damper Actuator w/ Spring Return and Aux. Switches for Fire and Smoke Applications (175 lb-in)

Honeywell MS4120F1204 - Two Position Damper Actuator w/ Spring Return and Aux. Switches for Fire and Smoke Applications (175 lb-in)

SKU
MS4120F1204
Brand:
Reviews (0)
$661.33
Out of stock

(special order is available)

SPECIAL REQUEST

Important Notice:

This is a special order item and will ship with a minimum lead time of 14 days.

Special order items are non-returnable and cannot be canceled once placed.

Please note: Pricing is not final and will be confirmed after we contact you.

Direct Coupled Actuator
Type SPST, Direct Coupled, 2-Position, Fast Acting
Operation Type Spring Return, Manual Crank
Voltage Rating 120 Volt AC
Maximum AC Voltage 120 Volt
Current Rating 0.35 Amp (Driving), 0.15 Amp (Holding)
Frequency Rating 60 Hertz
Power Rating 35 Watt (Driving), 10 Watt (Holding)
Torque 175 Inch-Pound
Angle of Rotation 95 Degree
Enclosure NEMA 2, IP54
Size 3.94 Inch Width x 2.95 Inch Depth x 10.67 Inch Height
Shaft Diameter 3/8 to 1.06 Inch
Supply Connection Size 40 Inch Non-Stick Jacketed Cable
Body Material Aluminum
Operating Temperature -40 to 130 Deg F (Ambient)
Application Fire and Smoke
Approval UL 873, CUL C22.2, CE, C-Tick
Timing 15 Second
Includes (2) Auxiliary Switch
