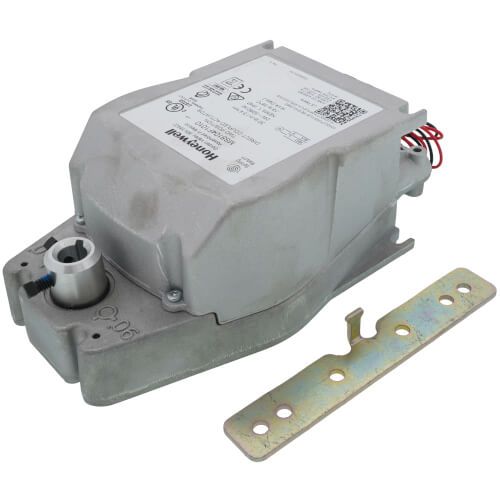

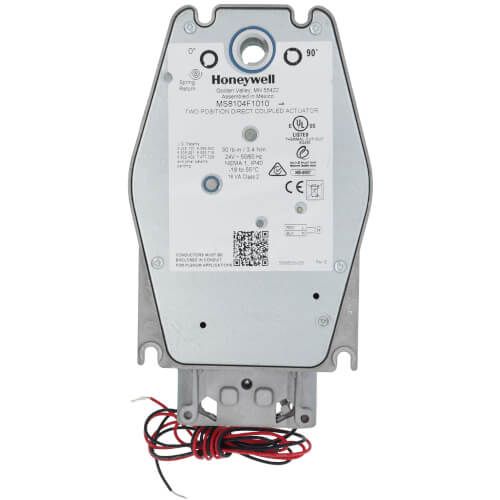

Honeywell MS8104F1010 - Fast Acting, Two-Position Spring Return Actuator (CW & CCW, 24V, 30 lb-in)

Brand:
Reviews (0)
SKU
MS8104F1010
Honeywell MS8104F1010 - Fast Acting, Two-Position Spring Return Actuator (CW & CCW, 24V, 30 lb-in)
Honeywell MS8104F1010 - Fast Acting, Two-Position Spring Return Actuator (CW & CCW, 24V, 30 lb-in)
Honeywell MS8104F1010 - Fast Acting, Two-Position Spring Return Actuator (CW & CCW, 24V, 30 lb-in)
Honeywell MS8104F1010 - Fast Acting, Two-Position Spring Return Actuator (CW & CCW, 24V, 30 lb-in)

Honeywell MS8104F1010 - Fast Acting, Two-Position Spring Return Actuator (CW & CCW, 24V, 30 lb-in)

SKU
MS8104F1010
Brand:
Reviews (0)
$342.50
Out of stock

(special order is available)

SPECIAL REQUEST

Important Notice:

This is a special order item and will ship with a minimum lead time of 14 days.

Special order items are non-returnable and cannot be canceled once placed.

Please note: Pricing is not final and will be confirmed after we contact you.

Damper Actuator
Type SPST, Direct Coupled, 2-Position, Fast Acting
Operation Type Spring Return
Voltage Rating 24 Volt AC
Maximum AC Voltage 24 Volt
Frequency Rating 50/60 Hertz
Power Rating 16 Volt Amp (Driving), 8 Volt Amp (Holding)
Torque 30 Inch-Pound
Angle of Rotation 95 Degree
Enclosure NEMA 1, IP40
Size 5.13 Inch Width x 3.32 Inch Depth x 8.9 Inch Height
Shaft Diameter 1/2 Inch
Supply Connection Size 39 Inch Color Coded Lead
Body Material Aluminum
Operating Temperature 0 to 130 Deg F (Ambient)
Application Fire and Smoke
Approval UL 873, CUL C22.2, C-Tick
Timing 15 Second
