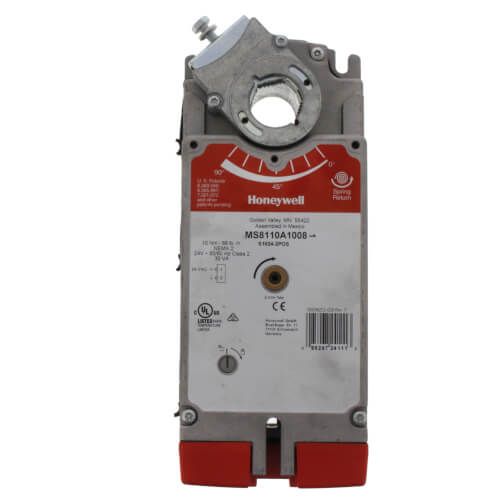

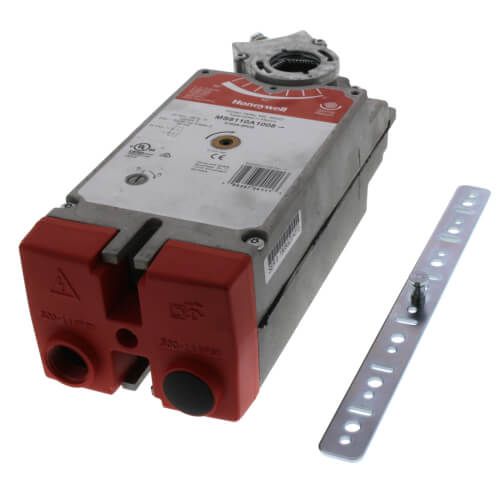

Honeywell MS8110A1008 - Two Position Damper Actuator w/ Spring Return for HVAC, 24v (88 lb-in)

Brand:
Reviews (0)
SKU
MS8110A1008
Honeywell MS8110A1008 - Two Position Damper Actuator w/ Spring Return for HVAC, 24v (88 lb-in)
Honeywell MS8110A1008 - Two Position Damper Actuator w/ Spring Return for HVAC, 24v (88 lb-in)
Honeywell MS8110A1008 - Two Position Damper Actuator w/ Spring Return for HVAC, 24v (88 lb-in)
Honeywell MS8110A1008 - Two Position Damper Actuator w/ Spring Return for HVAC, 24v (88 lb-in)

Honeywell MS8110A1008 - Two Position Damper Actuator w/ Spring Return for HVAC, 24v (88 lb-in)

SKU
MS8110A1008
Brand:
Reviews (0)
$371.77
Out of stock

(special order is available)

SPECIAL REQUEST

Important Notice:

This is a special order item and will ship with a minimum lead time of 14 days.

Special order items are non-returnable and cannot be canceled once placed.

Please note: Pricing is not final and will be confirmed after we contact you.

Damper Actuator
Type SPST, Direct Coupled, 2-Position
Operation Type Spring Return, Manual Crank
Voltage Rating 24 Volt AC/DC
Maximum AC Voltage 24 Volt
Maximum DC Voltage 24 Volt
Frequency Rating 50/60 Hertz
Power Rating 30 Volt Amp (Driving), 8 Volt Amp (Holding)
Torque 88 Inch-Pound
Angle of Rotation 95 Degree
Enclosure NEMA 2
Size 3.94 Inch Width x 2.95 Inch Depth x 9.72 Inch Height
Shaft Diameter 3/8 to 1.06 Inch
Body Material Aluminum
Operating Temperature -40 to 140 Deg F (Ambient)
Application HVAC System
Approval UL 873, CUL C22.2, CE, C-Tick
Connection Type Enclosed Screw Terminal Strip
Timing 20 Second
