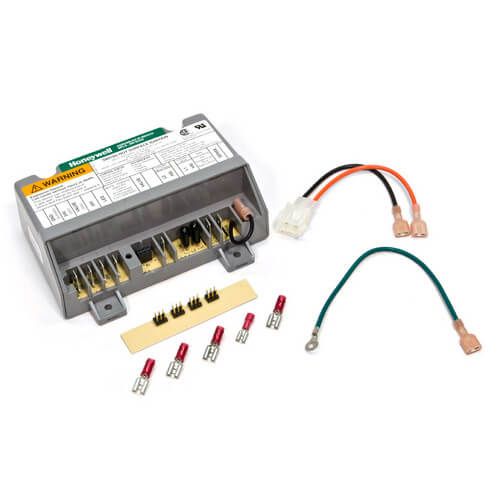

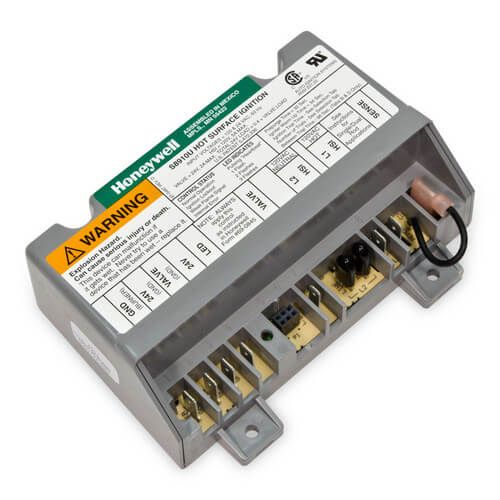

Honeywell S8910U1000 - One or Two Rod Hot Surface Ignition Control
Honeywell S8910U1000 - One or Two Rod Hot Surface Ignition Control
Description: Provide electronic control of direct hot surface ignition systems used on gas fired furnaces, boilers, and other heating appliances.
Ignition System Type: Direct Hot Surface Ignition
Ignition Sequence: The number of trials for ignition and trial time is determined by the selection tab. If a selection tab is not installed, the module will operate at four seconds trial time and one ignition trial.
Typical Gas Control: VR8205, VR8305
Type of Gas: Natural or LP
Flame Sense: Single Rod or Two rods
Ignition Source: Line Voltage (120 VAC) Hot Surface Element (Norton Model 201 or 270)
Prepurge: 32 Seconds
Ignition Trials To Lockout: 1 or 3
Lockout Timing: 4 Sec. or 7 Sec
Ignition Trial Time: 4 sec. or 7 sec.
Maximum Valve Load @ 24 Vac (Amps): 2A
Typical Ignition Hardware: Norton 201, Norton 271, Q354A
Dimensions: 5 1/4 in. high x 4 1/16 in. wide x 1 15/16 in. long
Electrical Ratings: 24 Vac
Frequency: 60 Hz
Max Ambient Temperature: -40 F to +175 F
Between Trial Time: (2) 96 sec. – 3 trial mode only
Flame Failure Response Time: 1.5 sec
