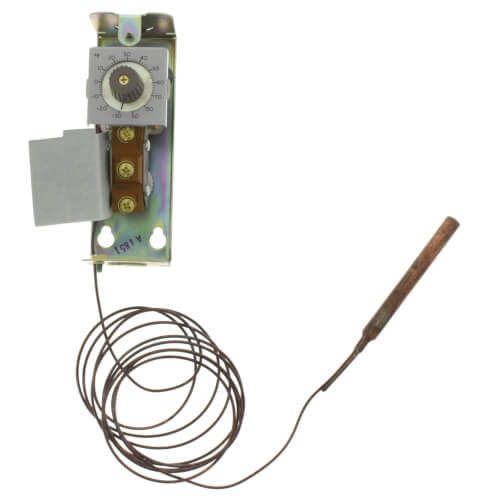

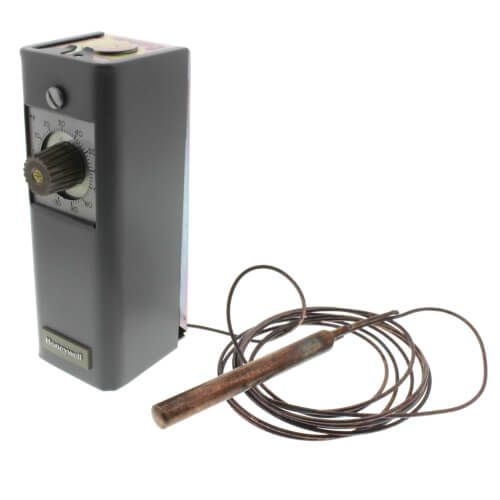

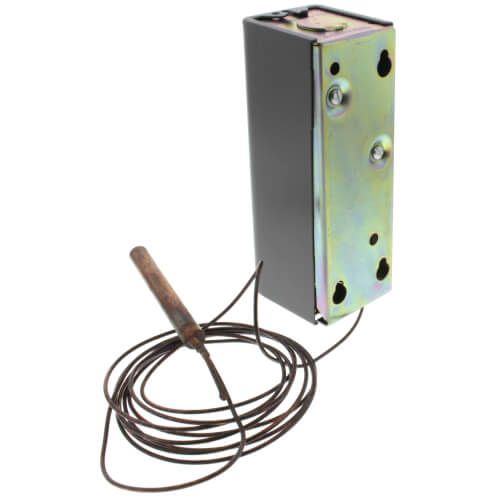

Honeywelll T6031A1029 - Remote Bulb Refrigeration Temperature Controller with -30 F to 90 F setting temperature and 8 ft. capillary
Honeywelll T6031A1029 - Remote Bulb Refrigeration Temperature Controller with -30 F to 90 F setting temperature and 8 ft. capillary
Description:
Provide limit or temperature control in refrigerated areas where remote mounting of sensing element is required.
Specifications:
Specifications:
Remote Bulb Refrigeration Temperature Controller with -30 F to 90 F setting temperature and 8 ft. capillary
Type : Remote bulb
Application: Provides control of cooled or refrigerated space
Switching: 1 SPDT
Setting Temperature Range: -30 F to +90 F
Sensor Element: Copper bulb
Capillary Length (ft): 8 ft.
Maximum Operating Temperature (F): 125F
Differential Temperature (F): 3.5 F
Voltage: 125Vac
Voltage: 240 Vac
Contact Ratings (120 Vac): 8.0 AFL, 48.0 ALR
Contact Ratings (240 Vac): 5.1 AFL, 30.6 ALR
Dimensions (in.): 5 5/8 in. high x 2 in. wide x 2 1/4 in. deep
Bulb Size (in): 3/8 in. diameter x 3 in. long
Features:
Liquid-filled copper elements provide rapid sensing to control the compressor system.
Control temperature in a duct, tank, freezer or cooler.
Controller element can be directly immersed in the controlled medium.
Adjustable control setpoint.
Ambient temperature compensation provides good temperature control.
Refer to T775 Electronic Remote Temperature Controller where more exact control is required and/or remote controller location is preferred.
Temperature Range: -30° to 90°F
Min Temp (F): -30°F
Max Temp (F): 90°F
Capillary Length: 8'
Differential: 3.5° to 12°F
Switch Action: SPDT
