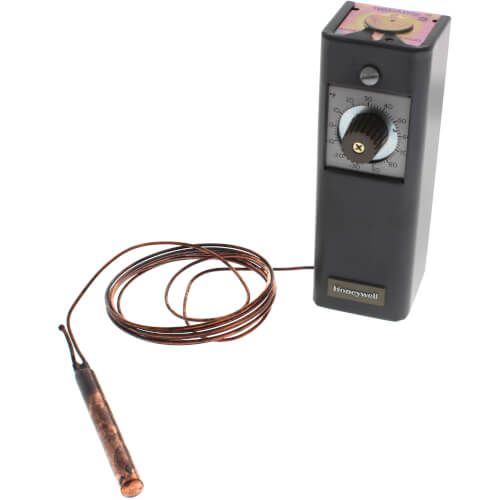

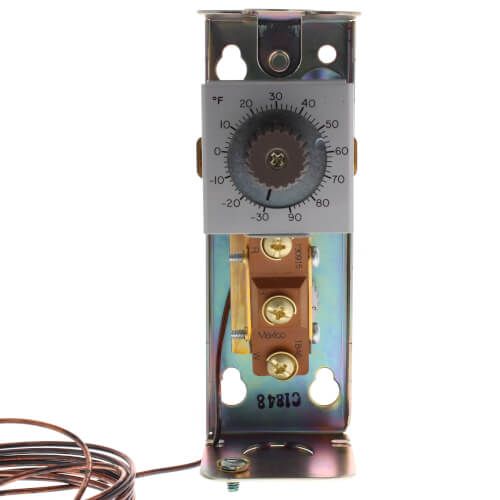

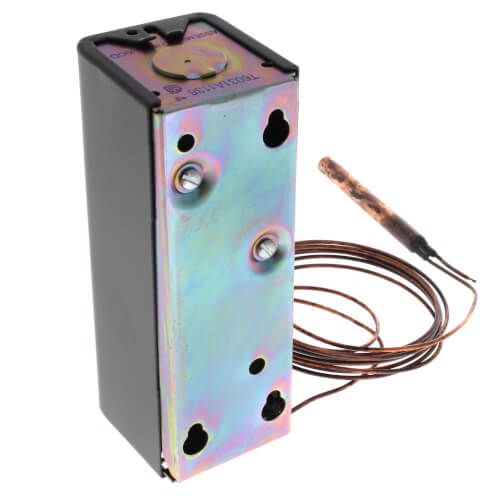

Honeywell T6031A1136 - Remote Bulb Refrigeration Temperature Controller w/ -30 to 90 F temp. setting and 8 ft. capillary
Honeywell T6031A1136 - Remote Bulb Refrigeration Temperature Controller w/ -30 to 90 F temp. setting and 8 ft. capillary
Provide limit or temperature control in refrigerated areas where remote mounting of sensing element is required.
Specifications:
Application: Provides control of cooled or refrigerated space
Dimensions (in.) : 5 5/8 in. high x 2 in. wide x 2 1/8 in. deep
Dimensions (mm) :143 mm high x 51 mm wide x 57 mm deep
Approvals, Underwriters Laboratories Inc. : File SA481, Vol. 3, Sec. 5, Guide SPFY
Approvals, Canadian Standards Association :Certified: File No. LR95329-1
Contact Ratings :120 Vac-- 8.0 AFL, 48.0 ALR; 240 Vac-- 5.1 AFL, 30.6 ALR
Voltage: 120 Vac; 240 Vac
Setpoint Temperature Range (F) : -30 F to +90 F
Operating Temperature Range (F) :125 F Maximum
Operating Temperature Range (C): 52 C Maximum
Type : Remote bulb
Sensor Element :Copper bulb
Capillary Length (ft) : 8 ft
Capillary Length (m): 2.4 m
Bulb Size (in.) : 3/8 in. diameter x 3 in. long
Bulb Size (mm): 10 mm diameter x 76 mm long
Differential Temperature (F) : 3.5 F to 16 F
Switching: 1 SPDT
Features:
Liquid-filled copper elements provide rapid sensing to control the compressor system.
Control temperature in a duct, tank, freezer or cooler.
Controller element can be directly immersed in the controlled medium.
Adjustable control setpoint.
Ambient temperature compensation provides good temperature control.
Refer to T775 Electronic Remote Temperature Controller where more exact control is required and/or remote controller location is preferred.
Min Temp (F): -30°F
Max Temp (F): 90°F
Temperature Range: -30° to 90°F
Capillary Length: 8'
Differential: 3.5° to 16°F
Switch Action: SPDT
