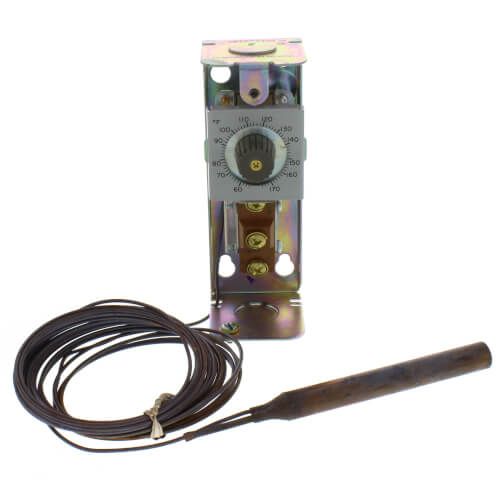

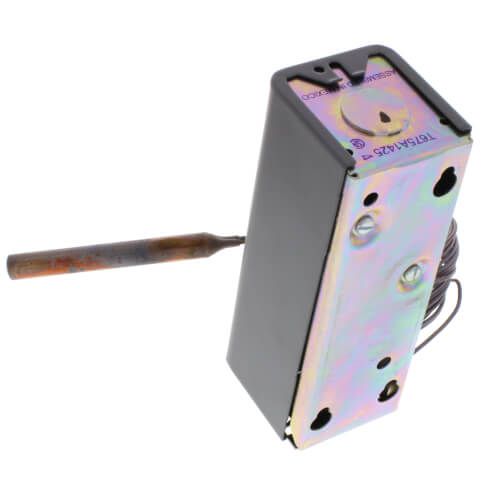

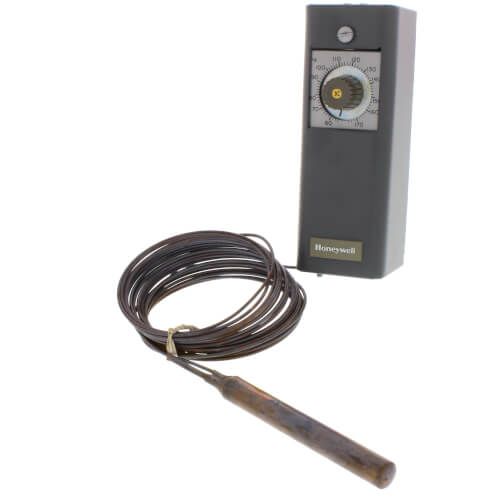

Honeywell T675A1425 - Remote bulb Commercial Temperature Controller, 55 F to 175 F, 20 ft. capillary, Copper bulb sensing element
Honeywell T675A1425 - Remote bulb Commercial Temperature Controller, 55 F to 175 F, 20 ft. capillary, Copper bulb sensing element
Remote Temperature Controller
Type 1/2 Inch Diameter x 3-9/16 Inch Length Copper Bulb, 20 Foot Length Capillary
Maximum Temperature Rating 200 Deg F
Contact Rating 8 Amp at 120 Volt AC/5.1 Amp at 240 Volt AC/4.2 Amp at 277 Volt AC (Full Load), 48 Amp at 120 Volt AC/30.6 Amp at 240 Volt AC/25.2 Amp at 277 Volt AC (Locked Rotor), 125 Volt Amp at 120/208/240/277 Volt AC
Contact Configuration (1) SPDT
Connection Type 1/2 Inch Conduit
Application Boiler, Tank, Duct, Pipe
Approval UL, CSA
Overall Dimension 2 Inch Width x 2-5/8 Inch Depth x 5-5/8 Inch Height
Differential Temperature Rating 3.6 to 12 Deg F
Set Point Temperature Rating 55 to 175 Deg F
Number of Sensor Inputs 1
| Package Quantity | 1 Item |
|---|---|
| Item Returns | This item can be returned |
