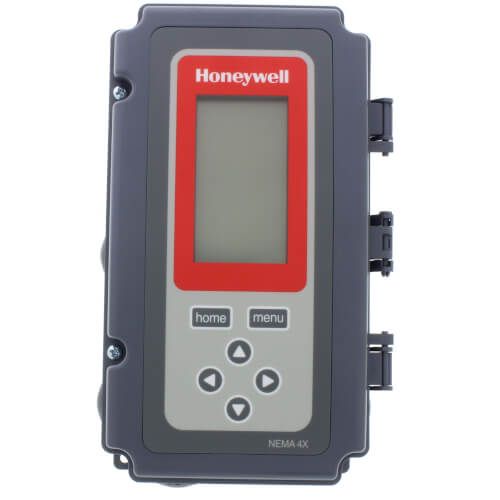

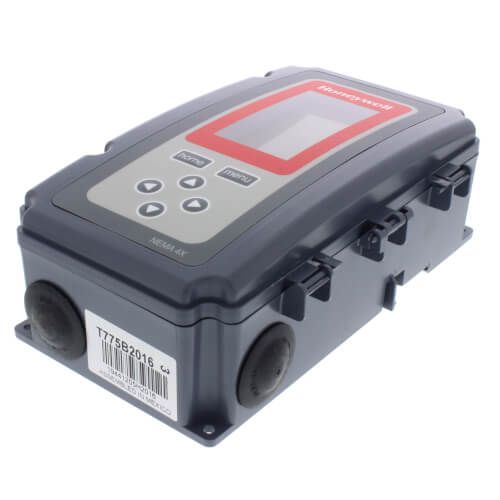

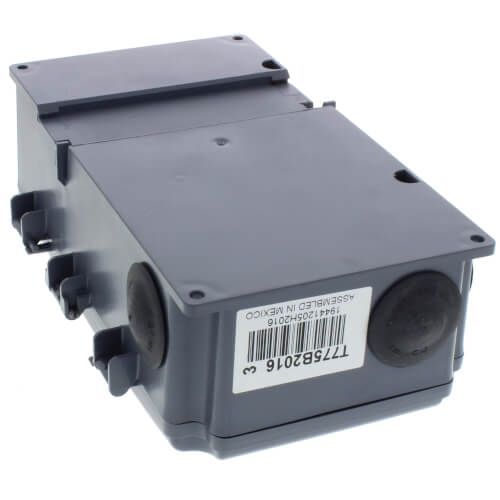

Honeywell T775B2016 - Electronic Temp Controller w/ 2 Temp Inputs, 2 SPDT Relays, NEMA 4X Enclosure
Honeywell T775B2016 - Electronic Temp Controller w/ 2 Temp Inputs, 2 SPDT Relays, NEMA 4X Enclosure
Application: Electronic Remote Temperature
Output: Relay, 2 SPDT
Voltage: 240v, 120v, 24v
Sensor Inputs: 2
Hertz: 50, 60
Contact Ratings 24v: 10.0 A Resistive
Contact Ratings 120v: 1/2 hp, 9.8 AFL, 58.8 ALR, 125 VA Pilot Duty
Contact Ratings 240v: 4.9 AFL, 1/2 hp, 125 VA Pilot Duty, 29.4 ALR
Height (Inches): 8.15625"
Width (Inches): 4-13/32"
Depth (Inches): 2-15/16"
Sensor Type: 1097 ohm @ 77 F PTC, T775-SENS-WR
Max Dist To Sensor: Up to 1000 ft
Bulb Size: 1/4" x 2"
Max Temp (F): 248°F
Temperature Range (F): -40°F to 248°F
Min Temp (F): -40°F
Accuracy: +/-1° at 77°F
Throttling Range: 1°F to 150°F
Ambient Operating Temperature: -40°F to 140°F @ 60 Hz, -40°F to 125°F @ 50 Hz
Floating Output: 1
Features: NEMA 4X
| Package Quantity | 1 Item |
|---|---|
