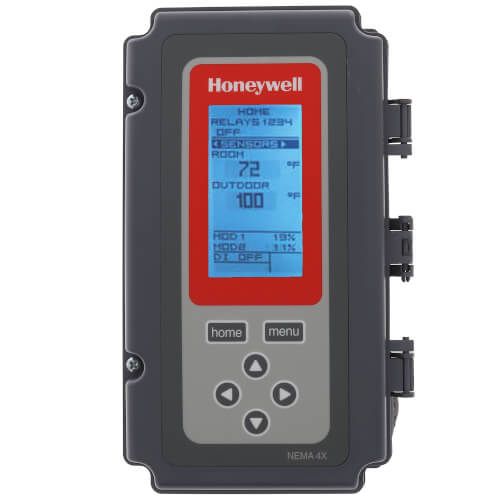

Honeywell T775M2022 - Electronic Temp Controller w/ 2 Temp Inputs, 2 SPDT Relays, 2 Analog Outputs, 1 Sensor, NEMA 4X Enclosure
Honeywell T775M2022 - Electronic Temp Controller w/ 2 Temp Inputs, 2 SPDT Relays, 2 Analog Outputs, 1 Sensor, NEMA 4X Enclosure
Application: On/off or analog controller for applications where electronic accuracy and remote sensing of temperature is required.
Type: Modulating-NEMA 4X
Analog Outputs: 2
Relay Outputs: 2 SPDT
Sensor Inputs : 2
Voltage: 24 Vac or 120/240 Vac
Frequency: 60 Hz
Frequency: 50 Hz
Relay Contact Ratings (24 Vac): 10.0A resistive
Relay Contact Ratings (120 Vac):1/2 hp; 9.8 AFL, 58.8 ALR, 125 VA Pilot Duty
Relay Contact Ratings (240 Vac): 1/2 hp; 4.9 AFL, 29.4 ALR, 125 VA Pilot Duty
Dimensions (in.): 8 5/32 in. high x 4 13/32 in. wide x 2 15/16 in. deep
Sensor Element: 1097 ohms PTC at 77 F (25 C)
Number of Sensor Inputs: 2

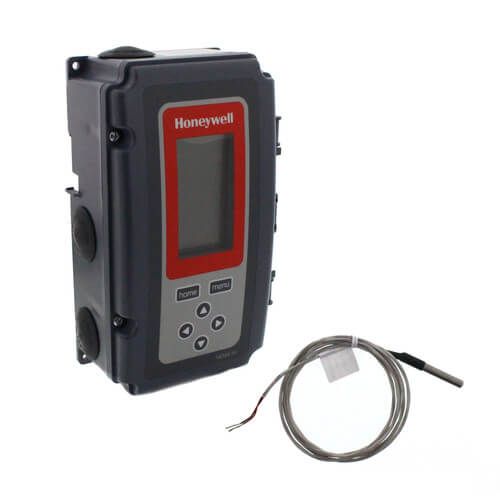

Sensors Included: T775-SENS-WR (1)
Maximum distance to sensor (ft): Up to 1,000 ft
Setpoint Temperature Range (F): -40 F to 248 F
Accuracy (F): ±1 F at 77 F
Differential Temperature (F): 1 F to 150 F
Operating Ambient Temperature Range (F): -40 F to 140 F @ 60 Hz
Expandable: Add 1 or 2 T775Ss (4 relays ea)
Analog Output Type: Electronic Series 90
