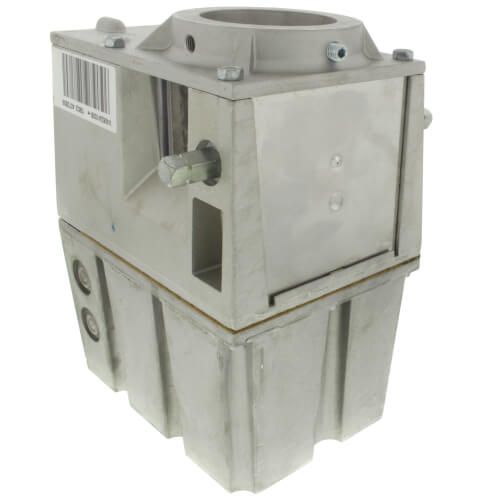

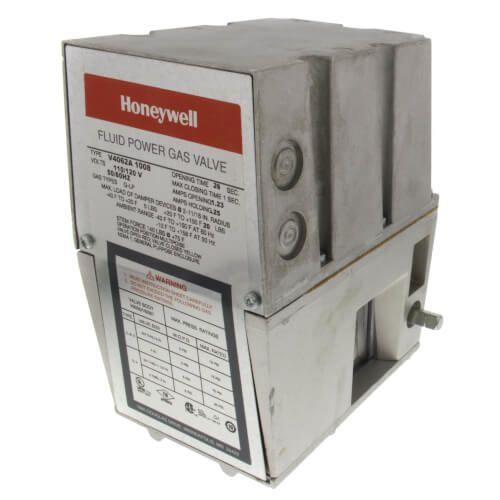

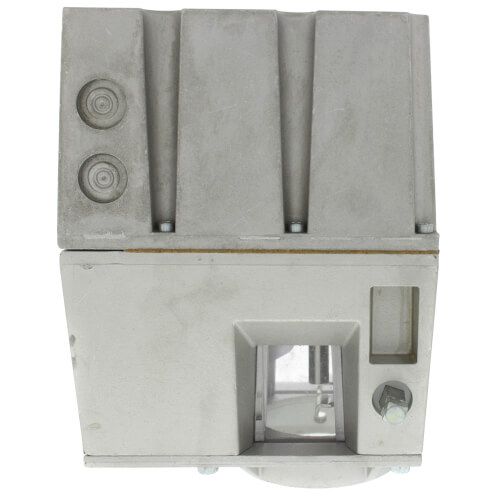

Honeywell V4062A1008 - Low pressure HI-LO-OFF Actuator
Fluid Power Gas Valve Actuator
Type Hi-Lo-Off, Standard, Low Pressure
Voltage Rating 120 Volt AC
Maximum AC Voltage 120 Volt
Frequency Rating 60 Hertz
Power Rating 59.5 Watt (Opening), 19 Watt (Holding)
Angle of Rotation 52 Degree
Enclosure NEMA 1, IP30
Size 5 Inch Width x 6-3/4 Inch Depth
Body Material Die-Cast Aluminum
Operating Temperature -40 to 150 Deg F (Ambient)
Application Industrial Gas Valve, Gas Burner
Approval UL, CSA (Canada and US)
Maximum Safe Operating Pressure 5 PSI
Timing 26 Second Opening, Less than 1 Second Closing
Includes Damper Shaft
Excludes Auxiliary Switch
