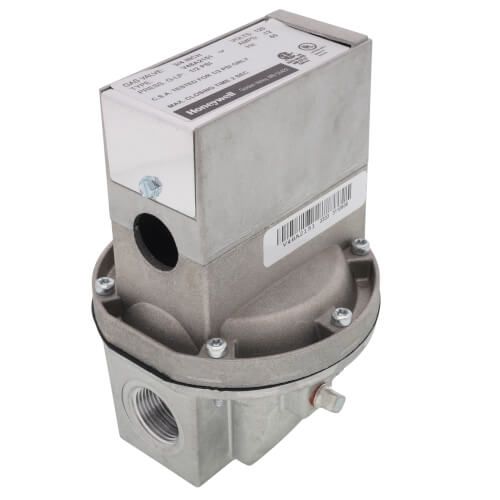

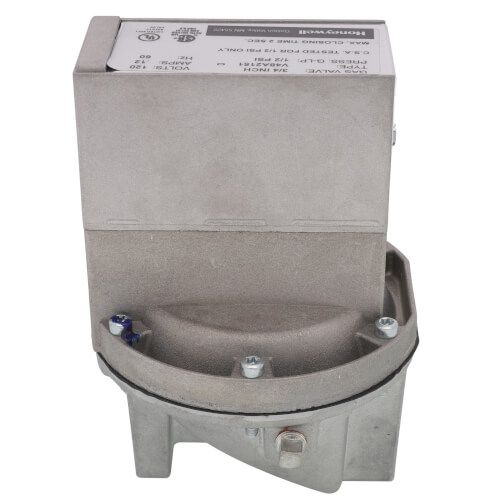

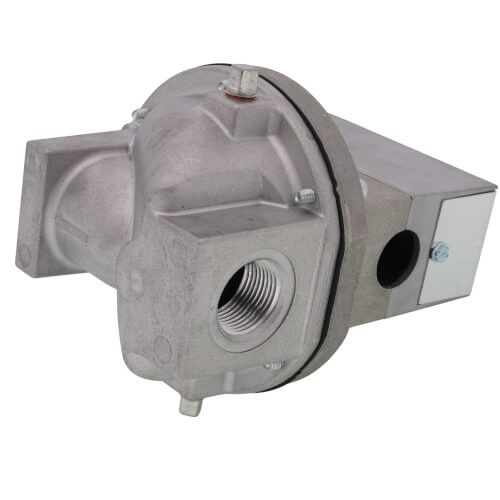

Honeywelll V48A2151 - Diaphragm Gas Valve, Normally Closed, 3/4" NPT Pipe Size, 1/2 max. psi
Honeywelll V48A2151 - Diaphragm Gas Valve, Normally Closed, 3/4" NPT Pipe Size, 1/2 max. psi
Diaphragm Gas Valve
Type NC, Slow Opening Fast Closing, Straight-Through, Non-Offset, Solenoid Operated
Nominal Size 3/4 Inch
End Connection Threaded x Threaded
End to End Distance 3-11/16 Inch
Body Material Die-Cast Aluminum
Temperature Rating 32 to 125 Deg F
Pressure Rating 1/2 PSI
Inclusions/Features Ground Terminal
Application Atmospheric Boiler, Commercial Water/Rooftop Heater
Applicable Standard UL, CSA
Overall Dimension 3-13/16 Inch Width x 4-5/8 Inch Depth x 5-7/16 Inch Height
Fuel Type Liquid Propane, Natural
Mounting Position Upright (Horizontal)
Connection Type 6 Inch Lead Wire
Voltage Rating 120 Volt AC 60 Hertz
Current Rating 0.13 Amp
Power Rating 9 Watt
Valve Operation Timing 5 Second (Open), 2 Second (Close)
| Package Quantity | 1 Item |
|---|---|
