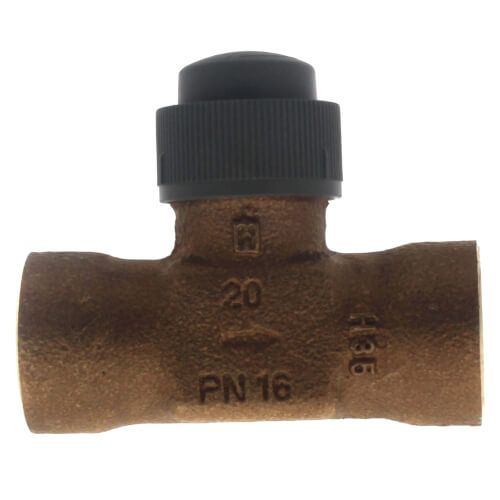

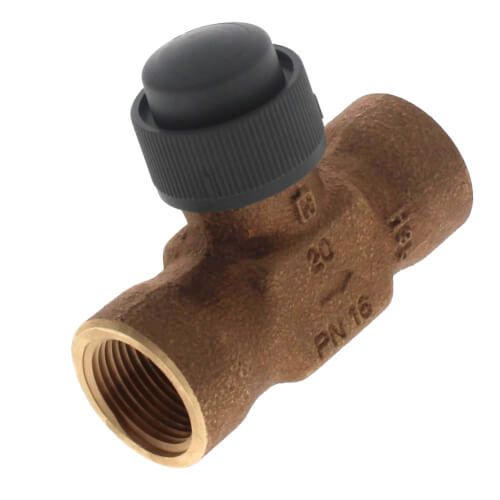

Honeywelll V5862A2070 - 3/4" NPT Two Way Cartridge Globe Valve (4.9 Cv)
Honeywelll V5862A2070 - 3/4" NPT Two Way Cartridge Globe Valve (4.9 Cv)
Long stroke allows wider range of control.
Soft valve seat provides low leakage rate.
Inserts for 1/2 in. and 3/4 in. valves are changeable without draining valve when used with an insert replacement tool.
Brass body and Stainless Steel stem.
Threaded plastic cover/manual handle allows manual operation.
Easily installed in areas where space is limited.
Specifications:
Valve Type: Cartridge Globe Valve
Body Pattern: Two-way
Flow Characteristic: Equal Percentage
Controlled Medium: Chilled or hot water with up to 50% Glycol
Connection Type: NPT (Female)
Max. Safe Operating Pressure: 235 psi
Maximum Differential Pressure Ratings (Close-off) (psi): 58 psi
Valve Action: Stem down to close
Actuation: Must be purchased separately
Stem Travel: 1/4 in.
Ambient Temperature: 36 to 230 F
Leakage Rating: ANSI Class IV (0.01% of Cv maximum)
Used with: M6410A1029; M7410F1000; M6435A1004; M7435F1001; MP958
Size: 3/4"
Flow Capacity (Cv): 4.9
Connection Type: Threaded
Body Pattern: 2-Way
Temperature Range: 36° to 230°F
