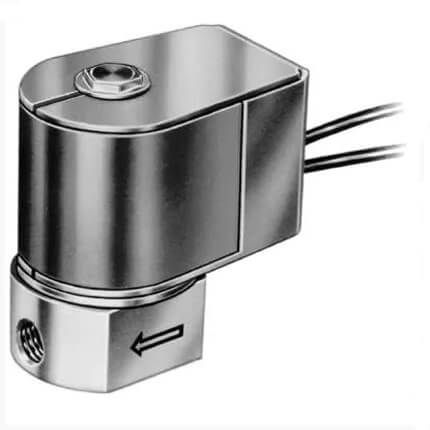

Honeywell V8046C1006 - 1/8" NPT Solenoid Pilot Gas Valve, 24 VAC (10 psi)
Honeywell V8046C1006 - 1/8" NPT Solenoid Pilot Gas Valve, 24 VAC (10 psi)
Overview:
Provide on-off control of natural, LP and manufactured gases to pilot burners in industrial and commercial applications.
Product Features:
Magnetically operated, normally closed.
Provide instantaneous action when energized.
On power failure, valve closes in one second maximum.
Use in any position, directly in pipe line or on support bracket.
Replace the solenoid coil without removing the valve body from the piping connections.
Straight-through valve pattern.
Available in line voltage or low voltage models.
Fuel Type: Air, Propane, Natural Gas
Voltage: 24v
Pipe Size: 1/8"
Capacity (CFH): 20
Pressure Rating: 10 psi
Operating Temp Range: -40 F to +125 F
Size: 1/8"
Max Temp (F): 125°F
Min Temp (F): -40°F
