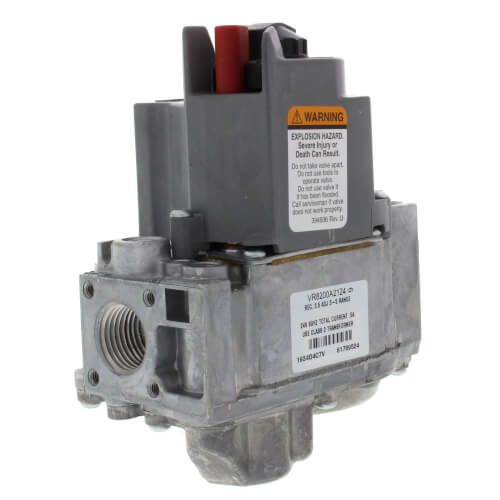

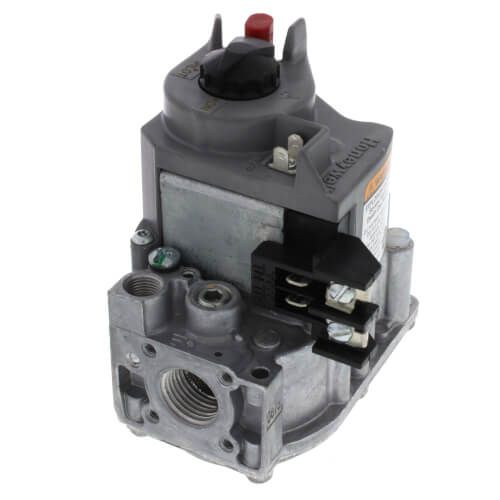

Solenoid Gas Valve

Type Standing Pilot Operated, 1-Stage, Straight-Through, Diaphragm

Port Connection 1/2 Inch Compression x 1/2 Inch Compression

Input Supply Rating 24 Volt AC at 60 Hertz

Temperature Rating 0 to 175 Deg F

Pressure Rating 1/2 PSI

Mounting Details 0 to 90 Degree in any Direction from Upright Position of Gas Control Knob, Including Vertically

Media Handled Gas

Inclusions/Features (1) 3/4 Inch Straight Flange, (1) 1/2 Inch x 3/8 Inch Reducer Bushing, Natural to Liquid Propane Conversion Kit, Q340 Thermocouple, Standard Opening, Manual Valve, (2) Automatic Operator, Servo Pressure Regulator and Pilot Adjustment, Low Voltage

Application Residential Gas Fired Appliance

Applicable Standard UL, CSA

Overall Dimension 4-1/8 Inch Width x 3-1/4 Inch Depth x 5-3/16 Inch Height

Pressure Regulator Setting 3.5 Inch WC

Pressure Tapping Size 1/8 Inch Threaded with Plug

Flow Capacity 20 to 200 CFH

Electrical Connection 1/4 Inch Quick Connect Male Terminal
