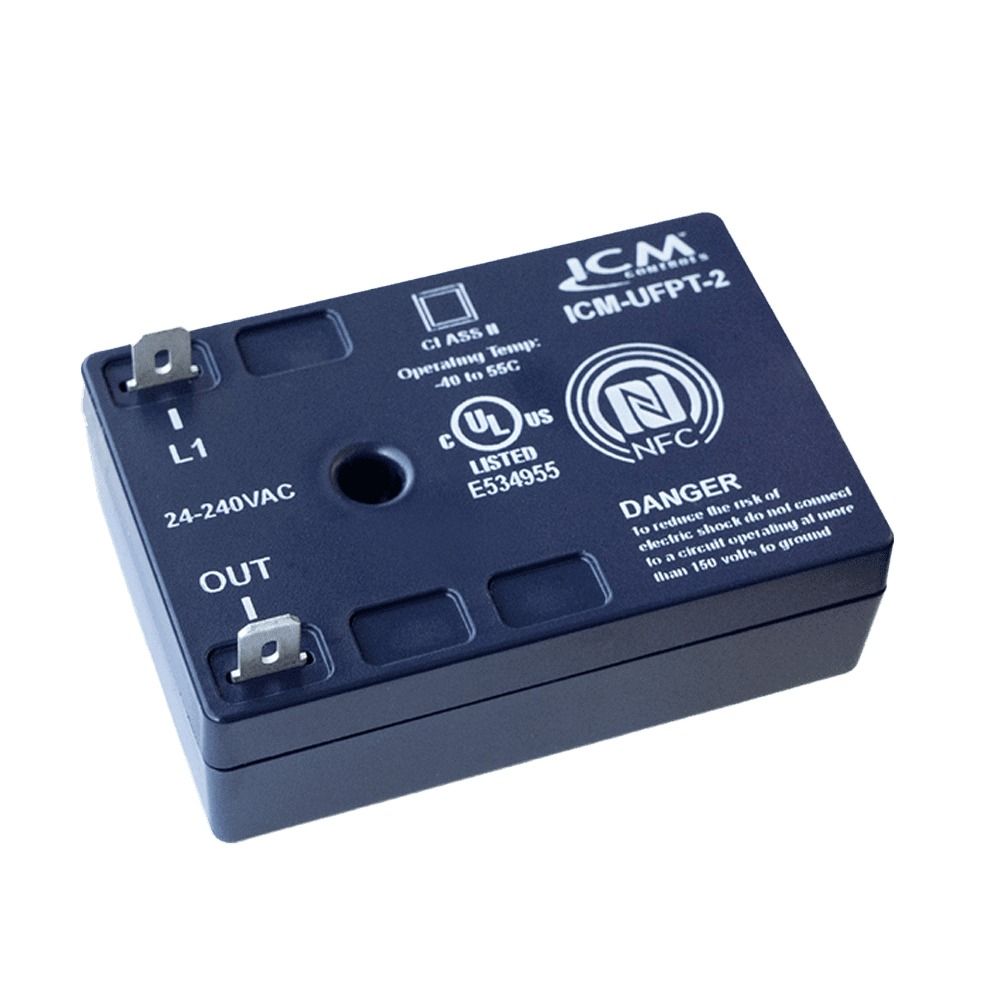

ICM Controls ICM-UFPT-2 - Universal Function Programmable Timer
ICM Controls ICM-UFPT-2 - Universal Function Programmable Timer
ICM-ICM-UFPT-2 Universal Function Programmable Timer
Overview
The ICM-ICM-UFPT-2 is a universal programmable time delay relay featuring advanced NFC (Near Field Communication) technology. This smart timer allows quick configuration with a smartphone using the ICM Omni app, eliminating the need for manual dials or wiring adjustments. Built for versatility, it supports multiple timing functions, making it a reliable solution for HVAC, appliance, and general electrical applications.
Key Features
- NFC-enabled configuration using a mobile device
- Six selectable timer modes: On Delay, Interval, Anti-Short Cycle, Repeat Cycle, Off Delay (5-wire), and Single Shot (5-wire)
- Wide input voltage range: 24–240 VAC for universal compatibility
- Replaces over 85 legacy ICM timers, reducing inventory needs
- Compact design for easy installation in a variety of systems
Technical Specifications
- Input Voltage: 24–240 VAC, 50/60 Hz
- Load Requirements: Minimum 40 mA
- 2-wire model: up to 0.5 A output
- 5-wire model: 5 A dry contact relay
- Impulse Voltage Rating: 2500 V
- Response Time: 75 ms (ignores short power interruptions within 0.5–3 seconds on 2-wire model)
- Dimensions: Approximately 3" × 2" × 1"
- Environmental Rating: Pollution Degree 2
Applications
The ICM-ICM-UFPT-2 is ideal for HVAC/R systems, appliances, marine equipment, pool and spa systems, RVs, and other industrial or residential applications where precise timing control is required. Its universal design and mobile-based setup make it a preferred choice for contractors, technicians, and OEMs.
Why Choose the ICM-UFPT-2?
By combining flexible configuration, broad voltage compatibility, and NFC technology, the ICM-UFPT-2 reduces installation time, simplifies inventory, and delivers reliable, efficient control across a wide range of systems.
Universal function programmable timer using NFC technology (2 wire), replaces 80+ legacy timers
