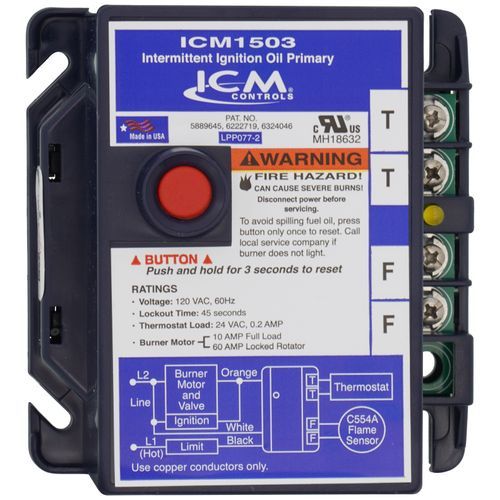

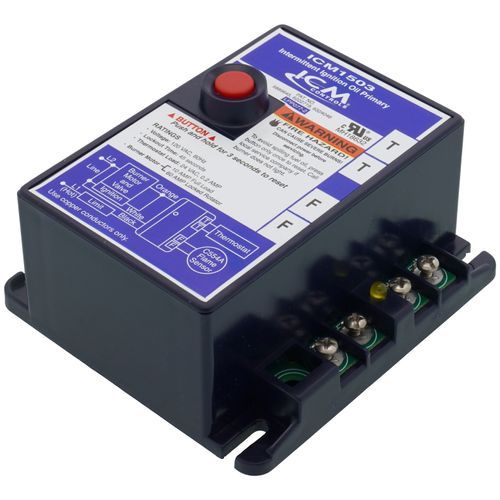

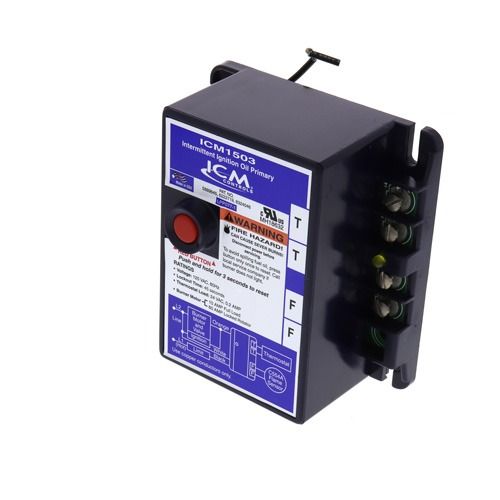

ICM1503 Intermittent Ignition Oil Primary Control – 45-Second Safety Lockout

The ICM1503 is a UL-approved Intermittent Ignition Oil Primary Control, designed to enhance the safety and performance of residential oil-fired burners including boilers, furnaces, and water heaters. It is ideal for applications that do not require pre-purge or post-purge cycles.

Key Features & Benefits
  • Reliable Ignition Management
    Controls the oil burner, ignition transformer, and optional oil valve in response to thermostat heat calls.
  • Advanced Flame Detection
    Equipped with a C554A Cadmium Sulfide (cad cell) to detect flame presence and automatically shut down if a flame is not sensed.
  • Built-In Safety Lockout
    Provides a 45-second lockout timer. If ignition fails, the system safely locks out and can be reset with the red external button (press and hold three seconds, triggered on release).
  • LED Diagnostics
    Includes an LED indicator to provide clear system and lockout status for quick troubleshooting.
  • Versatile Installation

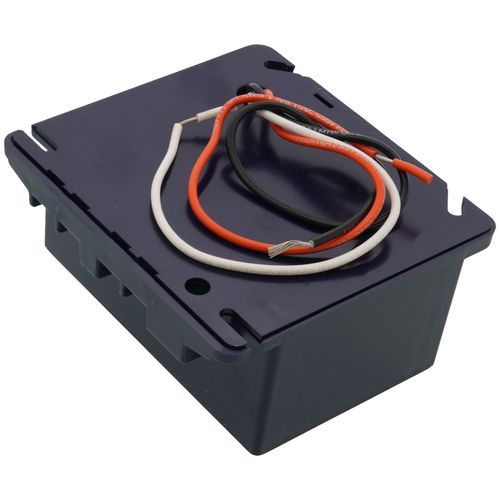

    Mounts on a standard 4×4" J-Box, with some models offering direct burner housing mounting for convenience.
  • Robust Electrical Ratings
    • Full load: 7.4 A @ 120 VAC; 3.7 A @ 240 VAC
    • Locked rotor: 44.4 A @ 120 VAC; 22.2 A @ 240 VAC
  • Temperature Range
    Operates reliably from −30 °F to +130 °F.
  • Broad Compatibility
    Direct replacement for popular models including:
    • Honeywell: R8184G4009, R8184G1138, R8184G1427, R8184G4025
    • Carlin: 48245
    • Tempstar/Heil: 1147017
    • White-Rodgers: 668-401

Why Choose the ICM1503?

The ICM1503 provides dependable ignition control, flame safety, and diagnostic feedback, helping extend the life of your oil-fired heating equipment. With its 45-second safety lockout and cad cell flame detection, it ensures safe operation, easy installation, and long-term reliability.

Order the ICM1503 today from Beenimax.com – your trusted source for HVAC controls and replacement parts at competitive prices.
$12.15
Out of stock

(special order is available)

SPECIAL REQUEST

Important Notice:

This is a special order item and will ship with a minimum lead time of 14 days.

Special order items are non-returnable and cannot be canceled once placed.

Please note: Pricing is not final and will be confirmed after we contact you.

Oil Primary, Intermittent Ignition, flame sensing circuit, 45 sec, safety switch, reset button
