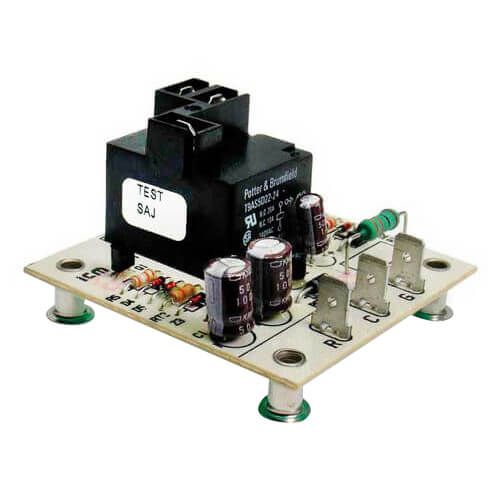

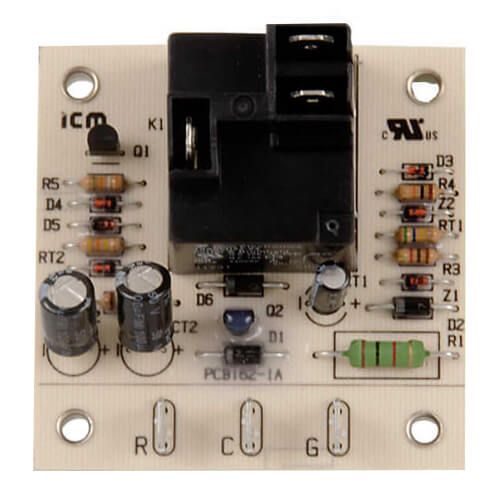

ICM Controls ICM255C - Fan Blower Control - Dual On/Off Delay Timer (Fixed Time Delay)
ICM Controls ICM255C - Fan Blower Control - Dual On/Off Delay Timer (Fixed Time Delay)
Product Features:
Low cost open board design
High power, relay output
Dual function fan delay timer
Controls the circulating fan in heat pump, A/C and forced air systems
OFF delay purges ducts of residual air
ON delay allows air to reach the proper comfort level prior to energizing the fan.
Replaces thermal time delays
Mode of Operation - Power must be applied before and during the time delay period. When the initiate contact closes, the load energizes and remains energized as long as the initiate contact is closed. The time delay begins when the initiate contact opens. At the end of the time delay period, the load is turned off. If the initiate contact re-closes during the time delay period the load remains energized and the time delay is reset to zero. Removal of the input power during the delay turns off the load and resets the time delay to zero. A one second interrogation delay is provided to avoid nuisance trips due to thermostat bounce or tampering.
Voltage: 18/30 VAC
Frequency: 50-60 Hz
- N.O.: 20 amps @ 240 VAC
- N.C.: 20 amps @ 240 VAC
Fixed Time Delay: 1 Second (ON), 60 Seconds (OFF)
Dimensions: 2.5" x 2.5"
| Package Quantity | 1 Item |
|---|---|
| Item Returns | This item can be returned |
