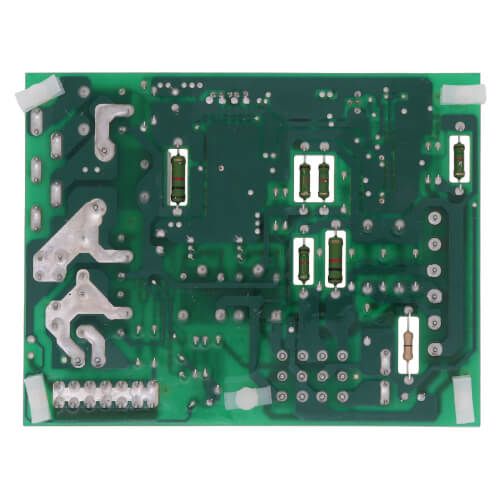

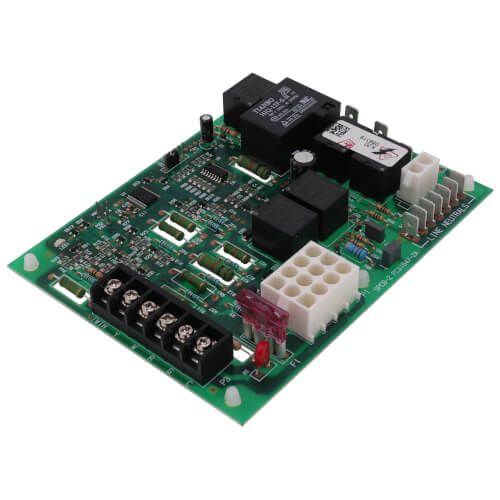

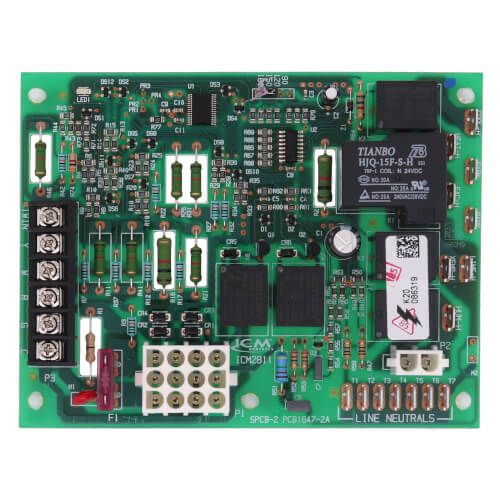

ICM-ICM2811 Automated Gas Ignition Furnace Control Board (Goodman OEM Replacement)
Upgrade or replace your furnace’s integrated control with the ICM-ICM2811—ICM Controls’ form-fit-function board engineered to manage the entire ignition sequence and keep safety circuits under constant watch. Designed as a direct Goodman OEM replacement, it monitors the inducer, pressure switch, hot surface ignitor, gas valve, flame sense, and circulating blower for reliable, efficient heat.
Why this board
- Direct, low-cost, form/fit/function replacement for select OEM boards
- Onboard diagnostic LED flash codes for fast troubleshooting
- Microprocessor precision for consistent performance
- Twinning compatible (can be paired with another ICM2811)
Key specifications
- Input voltage: 18–30 VAC
- Igniter current: 6.0 A @ 120 VAC (resistive)
- Inducer relay: 2.2 FLA / 3.5 LRA @ 120 VAC
- Blower relay: 14.5 FLA / 25.0 LRA @ 120 VAC (2-speed H/C)
- Gas valve relay: 1.5 A @ 25 VAC (0.6 pf)
- Operating temperature: −40°F to 176°F (−40°C to 80°C)
- Humidity range: 5–95% RH (non-condensing)
Factory blower timing (for comfort & equipment life)
- Heat blower ON delay: 30 seconds
- Heat blower OFF delay: selectable 90 / 120 / 150 / 180 seconds
- Cool blower ON delay: 5 seconds
- Cool blower OFF delay: 45 seconds
Replaces (cross-reference)
Goodman: PCBBF110, PCBBF110S, PCBBF112, PCBBF112S, PCBBF123, PCBBF123S, 0130F00005, 0130F00005S, B18099-26, B18099-26S
White-Rodgers: 50A55-743, 50A55-289, 50T55-289
White-Rodgers: 50A55-743, 50A55-289, 50T55-289
Typical applications
- Residential and light-commercial gas furnaces using hot surface ignition
- Service replacements where original boards have failed or are obsolete
What’s in the box
- ICM2811 control board
- Installation literature / wiring information (follow model-specific instructions)
Installation notes
For safety and proper operation, installation should be performed by a qualified HVAC technician. Verify model compatibility, observe ESD precautions, and confirm blower timings and safeties after install.
OEM replacement, Goodman PCBBF110/112/123, 0130F00005, B18099-26, ICM286
