Upgrade or replace your furnace’s integrated control with the ICM-ICM2812-KIT—a universal, microprocessor-based hot surface ignition (HSI) control designed to streamline diagnostics and restore reliable heat. The KIT version includes a universal harness set for fast, wire-to-wire retrofit installs. It is a direct replacement option for White-Rodgers 50M56U-843 and crosses to many competitive part numbers.
Why technicians choose the ICM-ICM2812-KIT
- Universal retrofit kit with harnesses for broad OEM compatibility and quicker installations
- HSI furnace control with precise timing, trial-for-ignition monitoring, flame sensing, and automatic safety lockout
- Clear LED status and fault codes to speed troubleshooting on site
- Compatible with natural gas or LP systems
Technical specifications
- Control voltage: 24 VAC (operating 18–30 VAC)
- Line voltage: 120 VAC
- HSI output: 6 A @ 120 VAC
- Gas valve output: 1.5 A @ 24 VAC
- Inducer motor: 2.2 FLA @ 120 VAC
- Blower motor: 14.5 FLA @ 120 VAC
- Operating temp: –40° to 176°F (–40° to 80°C); 5–95% RH non-condensing
- Compliance: UL 60730-1 / 60730-2-5; CSA E60730-1 / C22.2 #60730-2-5
Dimensions
- Board size (approx.): 5.125" L × 7.0" W
What’s in the box

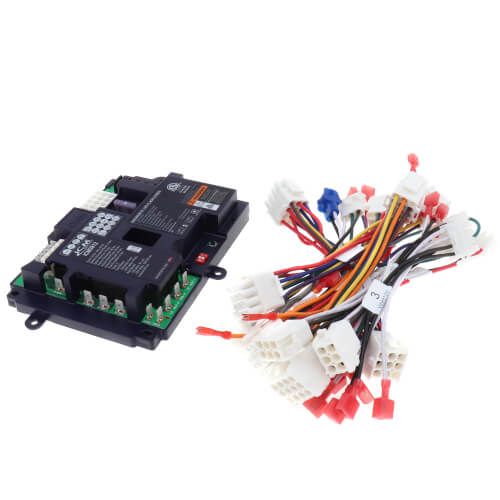

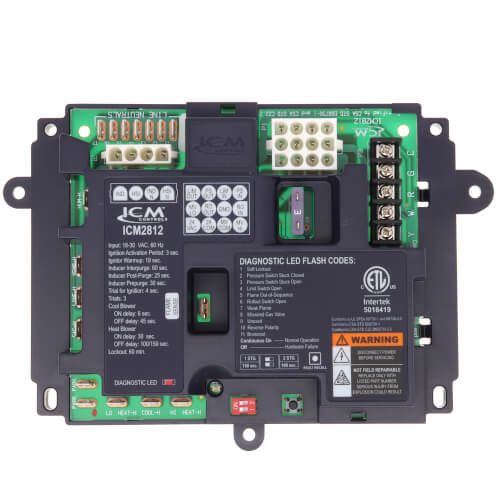

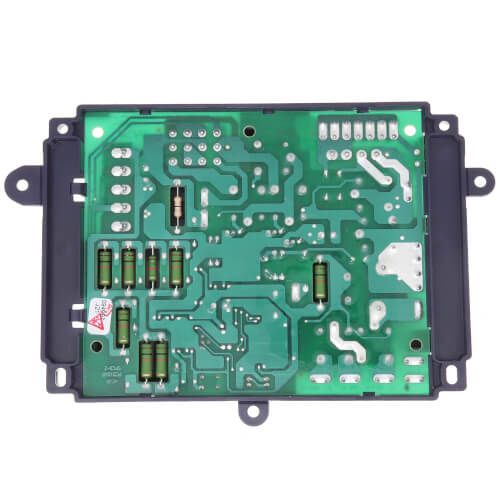

- ICM2812 furnace control board
- Universal harness set (KIT version) for cross-brand replacements
Compatibility / Cross-reference
- Direct replacement option for White-Rodgers 50M56U-843 (verify fit and function by model and wiring before ordering)
Installation notes
Professional installation is recommended. Follow OEM instructions and local codes. Verify line and control voltages, staging, and wiring against the furnace schematic before power-up.
OEM universal replacement board with cable harnesses, White-Rodgers 50M56U-843
