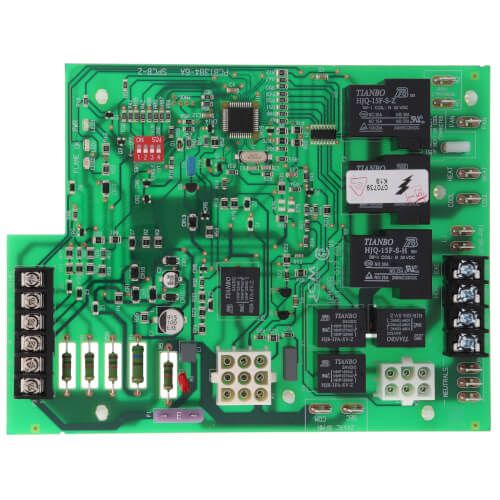

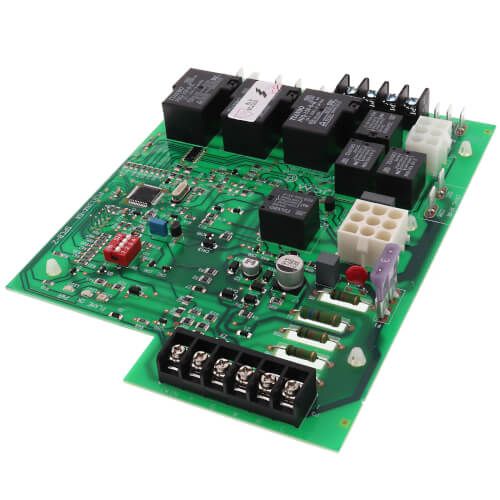

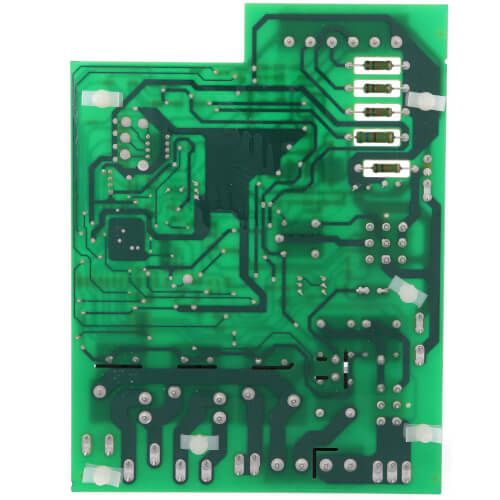

ICM-ICM288 Furnace Control Board (Replacement for Rheem 62-24084-82)
Upgrade or replace a failing furnace control with the ICM-ICM288. This microprocessor-based board provides reliable ignition and blower management, built-in LED diagnostics, and safety monitoring—all in a form-fit replacement for Rheem 62-24084-82 boards.
Key Features
- Form-fit, functional replacement for Rheem 62-24084-82
- Controls gas valve, inducer motor, circulating blower, and hot-surface ignitor (HSI)
- Monitors pressure, roll-out, and limit switches for enhanced safety
- Reverse-polarity detection to help prevent wiring errors
- Twinning-compatible for dual-furnace applications
- Diagnostic LED indicators simplify troubleshooting
Key Specs
- Input voltage: 98–132 VAC
- Application: Gas furnace ignition & blower control (HSI systems)
- Approximate board size: 7.50" × 5.75" × 1.50"; weight 0.55lb
Compatibility / Cross-Reference
- Direct replacement for: Rheem 62-24084-82
What’s Included
- ICM-ICM288 control board (installation instructions typically included)
OEM Replacement, Rheem 62-24084-82
| Package Quantity | 1 Item |
|---|---|
