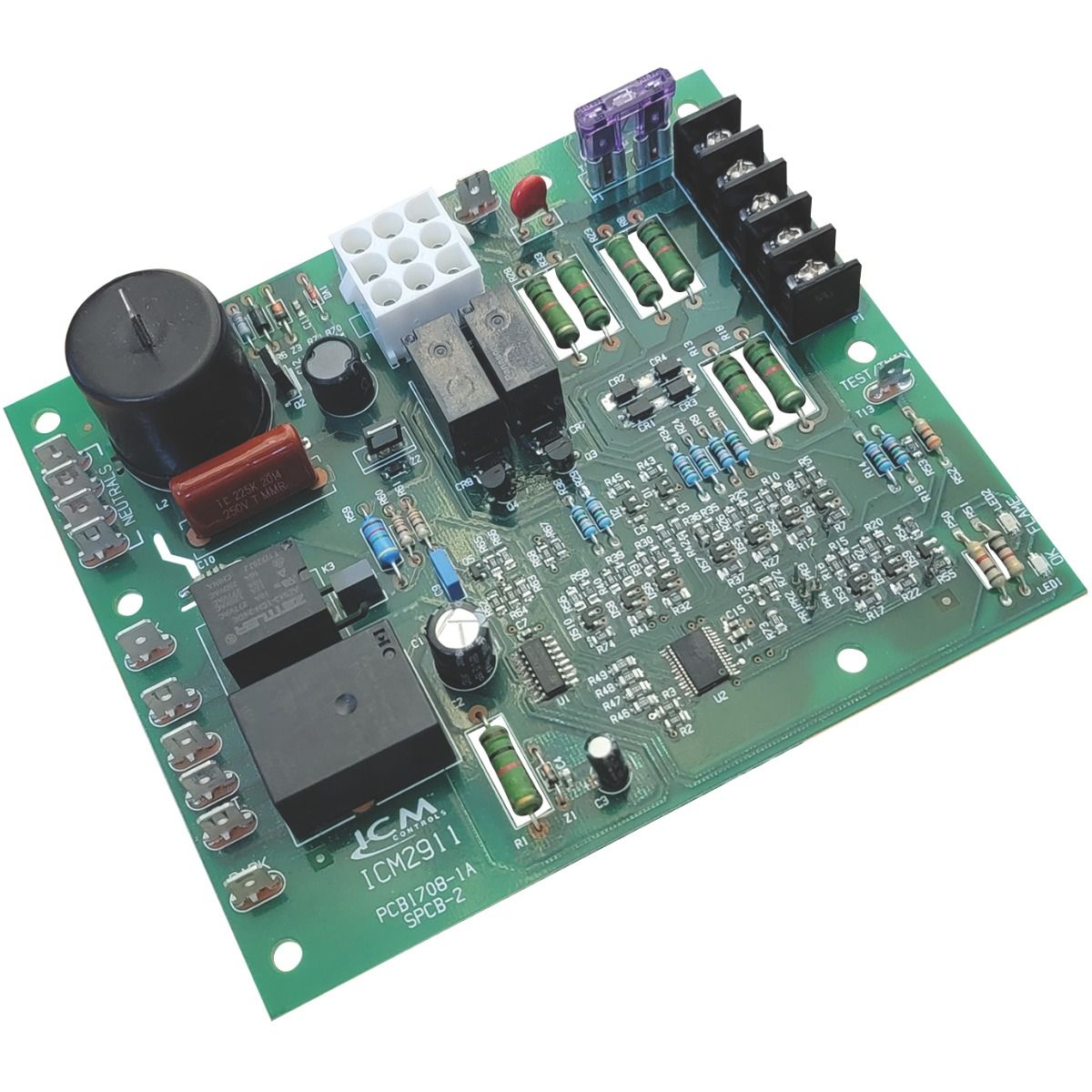

ICM-ICM2911 — Direct Spark Ignition (DSI) Control Board (Modine Replacement)
Upgrade or replace a failed heater ignition board with the ICM-ICM2911, a microprocessor-based Direct Spark Ignition (DSI) control designed as a form-fit-function replacement for select Modine units (commonly cross-referenced to 5H79749 / 5H079749B). It supervises trial-for-ignition, flame sense, lockout, and gas-valve outputs, with LED diagnostics to speed troubleshooting. Compatible with natural gas or LP systems.
Key features
- Microprocessor-based DSI control for reliable ignition sequencing and safety
- Monitors timing, flame sensing, and lockout; 100% lockout safety on repeated faults
- Verifies gas-valve output to prevent unintended on/off conditions
- On-board LED status and fault codes for fast diagnostics
- Works with natural gas or LP applications
Technical specifications
- Input power: 120 VAC line; 18–30 VAC control; 50/60 Hz
- Spark ignition: 12 kV open-circuit, 60 Hz
- Gas valve output: 2.3 A pilot duty @ 240 VAC
- Blower output (heat): 15 FLA / 30 LRA @ 277 VAC
- Inducer motor: up to 1/2 HP, 9.8 FLA / 58.8 LRA @ 120 VAC
- Operating temperature: −40°F to 149°F (−40°C to 65°C)
- Diagnostics: On-board LED status/fault codes
Dimensions & weight
- Approx. 6" L x 5" W x 3" H; ~1 lb (packaged)
Cross-reference / compatibility*
- Common replacements: Modine 5H79749, 5H079749B
*Always match by equipment model, wiring diagram, and specifications before ordering or installing.
What’s included
- ICM-ICM2911 control board
- Installation/application guide with fault codes
Typical applications
- Unit heaters and furnaces using direct spark ignition that require the above specifications and Modine-listed replacements
SKU: ICM2911
Condition: New
Condition: New
Modine 5H079749B spark ignition control
