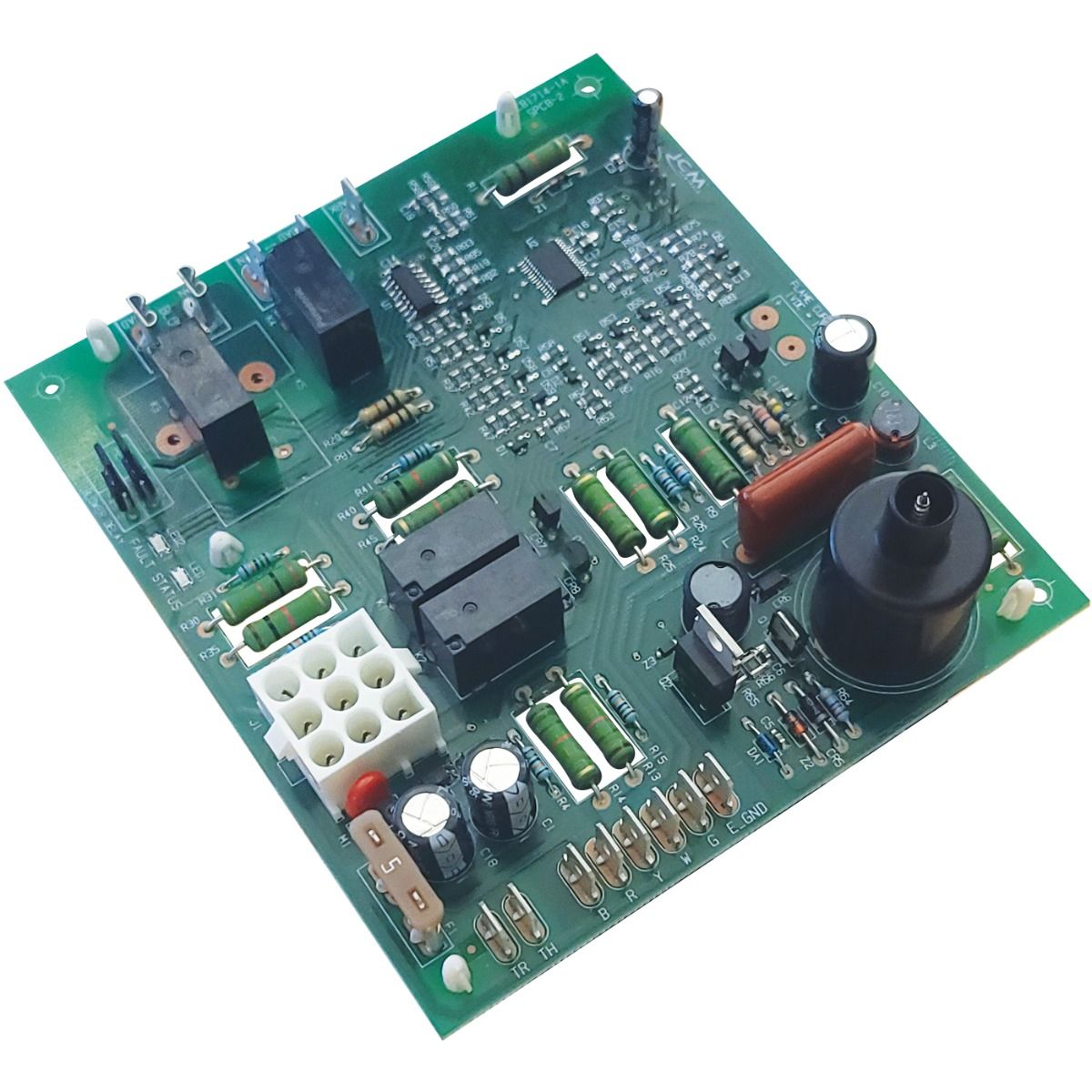

ICM Controls ICM2914 — Direct Spark Ignition (DSI) Control Board, Replaces Trane D674712P01
Bring failed furnaces back online with the ICM Controls ICM2914. This direct-spark-ignition (DSI) control board is a form, fit, and function replacement for Trane D674712P01, engineered to monitor the full ignition sequence and safeguard your system from lockouts and short-cycling. Ideal for fast, reliable service calls.
Key Features
- Direct Spark Ignition control: sequences inducer, pressure switch, spark, gas valve, flame sense, and circulating blower for dependable starts.
- Full safety circuit monitoring: integrates high-limit, rollout, and auxiliary limit protections to prevent unsafe operation.
- Short-cycle protection to extend component life.
- Selectable heat/cool blower off-delay for comfort tuning and condensate management.
- Drop-in replacement for Trane D674712P01—no field re-engineering.
Replaces / Cross-Reference
- Trane: D674712P01 (form/fit/function replacement)
Typical Applications
- Residential and light-commercial gas furnaces using DSI ignition where Trane D674712P01 was originally installed.
Dimensions & Weight
- Board size (L×W×H): 5.50" × 4.75" × 1.50"
- Approx. weight: 0.38 lb
What’s in the Box
- ICM2914 control board (use existing harness/mounting unless otherwise specified)
Installation Notes
- For qualified HVAC technicians only. Always disconnect power, verify wiring against the unit’s schematic, and confirm proper grounding and flame sense. After installation, verify timing, spark, and flame signal.
SEO Keywords (one line)
ICM2914, ICM 2914, ICM Controls ignition control board, direct spark ignition module, Trane D674712P01 replacement, furnace control board, DSI control, gas furnace ignition board
Call to action: In stock and ready to ship — available at Beenimax.
Trane DSI D674712P01
| Package Quantity | 1 Item |
|---|---|
| Item Returns | This item can be returned |
