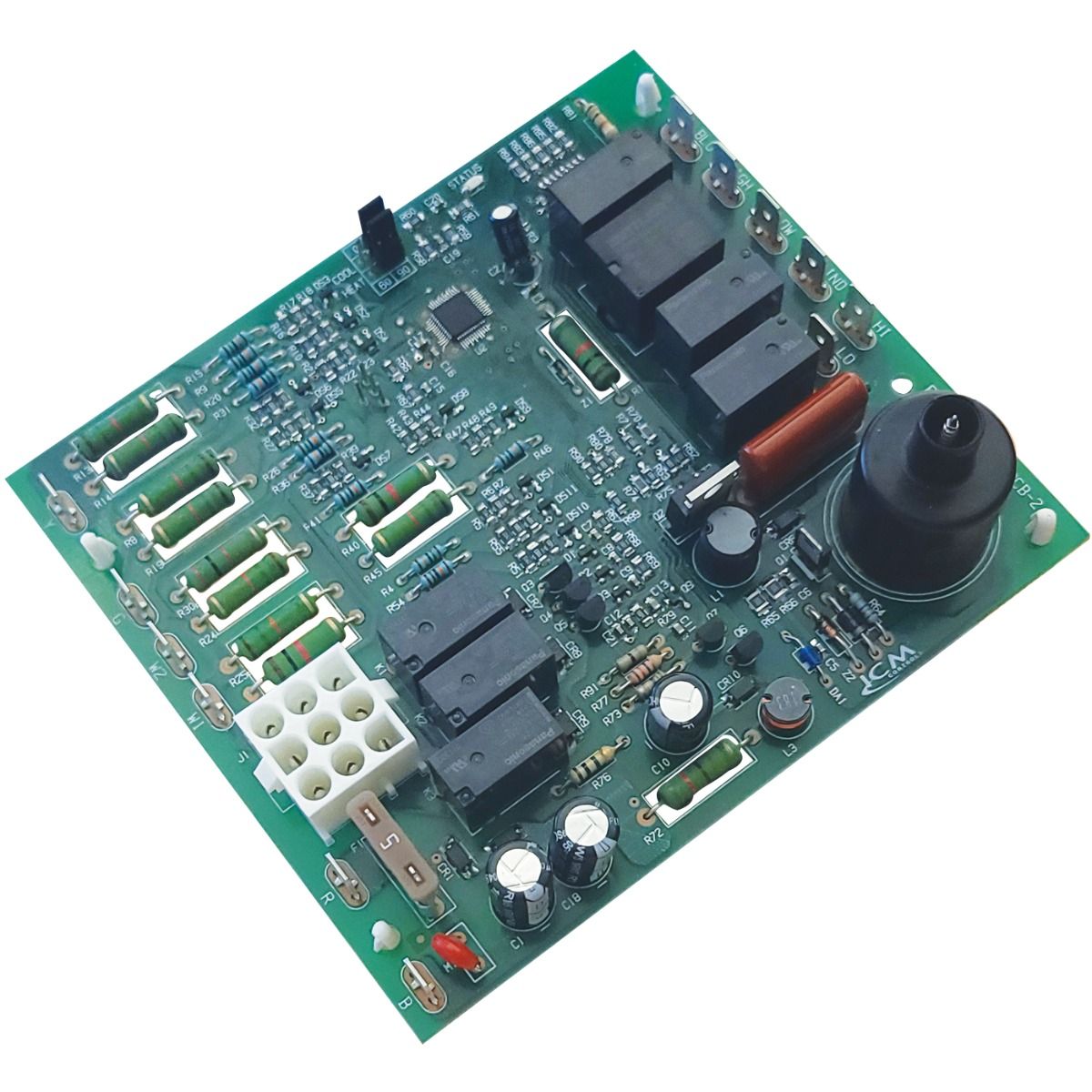

ICM-ICM2915 — Direct Spark Ignition (DSI) Furnace Control Board (Trane D674713P01 Replacement)
Upgrade reliability and safety with the ICM2915, a microprocessor-based DSI furnace control board engineered as a form, fit, and function replacement for select Trane systems using board D674713P01. The ICM2915 sequences the inducer, pressure switch, spark ignition, gas valve, flame sensing, and circulating blower, while constantly monitoring high-limit, rollout, and auxiliary safety circuits. Built-in LED diagnostics and selectable blower off-delays make installation and troubleshooting faster, and a lockout feature prevents short-cycling after repeated ignition failures.
Key Features
- Direct Spark Ignition (DSI) control with integrated safety monitoring
- Form/fit/function replacement for Trane board D674713P01
- LED flash codes for fast, accurate troubleshooting
- Selectable heat/cool blower off-delay to fine-tune comfort
- 2-stage operation (low heat / high heat) for better efficiency
- Short-cycle protection and safety lockout after repeated failures
Technical Specifications
- Line voltage: 230–240 VAC, 50/60 Hz
- Control voltage: 18–30 VAC
- Circulating blower output: up to 4 FLA @ 277 VAC
- Inducer output: 0.7 FLA, 1.5 LRA @ 24 VAC
- Combined gas valve load: 1.5 A @ 24 VAC
- Minimum flame signal threshold: 0.75 µA
- Dimensions (L×W×H): 5.50" × 4.75" × 1.50"
- Weight: ~0.38 lb
Compatibility / Cross-Reference
- Replaces: Trane D674713P01 (verify by model/board label before ordering)
What’s Included
- ICM2915 control board (installation sheet included with board packaging)
Installation Notes
- Power must be disconnected before service. Professional installation is recommended. Verify furnace model and wiring against the installation guide.
Trane DSI D674713P01
