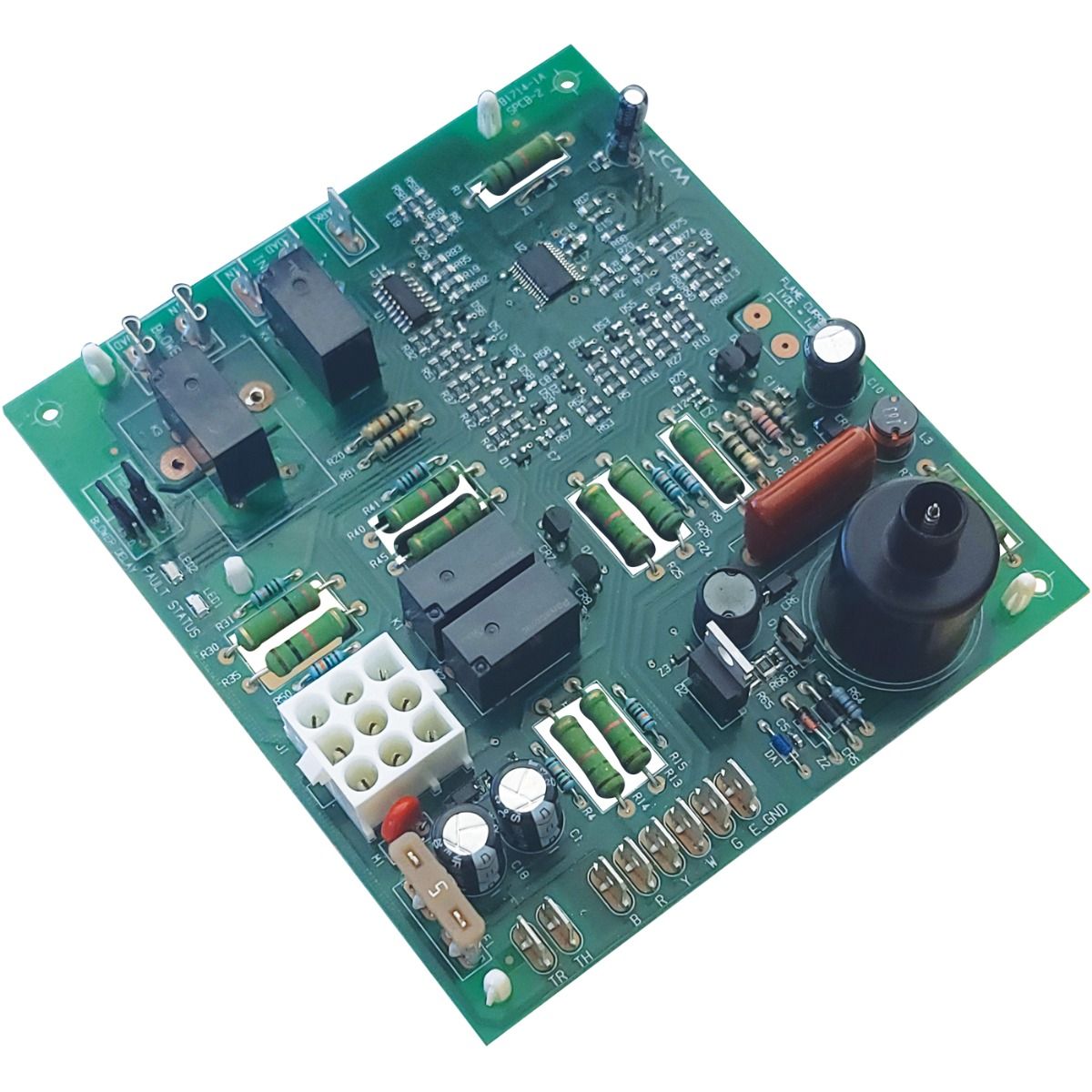

The ICM-ICM2916 is a microprocessor-based DSI control board designed to manage and protect gas furnace ignition sequences. Engineered as a form-fit-function replacement for Trane D674712P02, it coordinates inducer, spark, gas valve, flame sensing, and blower operation while continuously monitoring safety circuits. Built-in LED flash codes simplify diagnostics, and selectable heat/cool blower off-delays help fine-tune comfort and efficiency.
Key Features
- Direct Spark Ignition control; manages inducer, spark, gas valve, flame sense, and blowers in proper sequence
- OEM-style replacement for Trane D674712P02 (form, fit, and functional)
- LED flash-code diagnostics for faster troubleshooting
- Selectable heat/cool blower off-delay; helps prevent short cycling
- Durable design for reliable operation in demanding conditions
Electrical & Performance Specifications
- Line voltage: 230 VAC, 50/60 Hz
- Control voltage: 18–30 VAC
- Circulating blower: 4 FLA @ 277 VAC
- High-efficiency blower output: 10 mA @ 24 VAC
- Inducer blower: 0.7 FLA, 1.5 LRA @ 240 V
- Combined gas valve load: 1.5 A @ 24 VAC
- Minimum flame signal threshold: 0.75 μA
Dimensions & Weight
- Board size (L × W × H): 5.50" × 4.75" × 1.50"
- Product weight: ~0.38 lb
Compatibility & Cross-Reference
- Direct replacement reference: Trane D674712P02
- Always verify by furnace model and wiring before purchase/installation
What’s Included
- ICM2916 control board
- Installation/documentation materials (installation by a qualified technician recommended)
