ICM-ICM386 Temperature Sensor Probe — for ICM325A Head Pressure Control

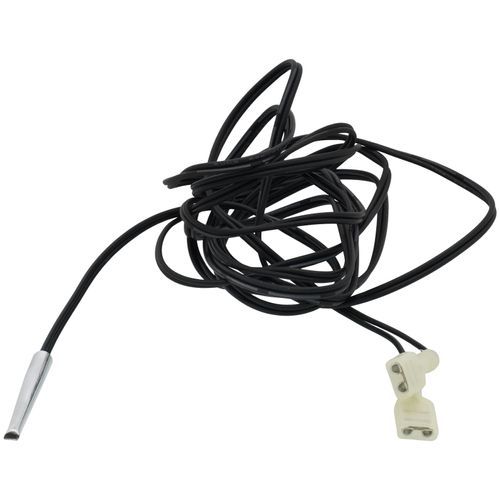

A genuine ICM Controls temperature probe designed to work with the ICM325A head pressure control (including the optional heat-pump bypass feature). The ICM-ICM386 uses 1/4" quick-connect terminals and a long 79" lead for flexible routing in tight condenser sections. Temperature sensing range is 70–100°F (21–38°C) for dependable head-pressure management and stable system performance.
Key features
- Purpose-built probe for the ICM325A head pressure control (heat-pump bypass compatible)

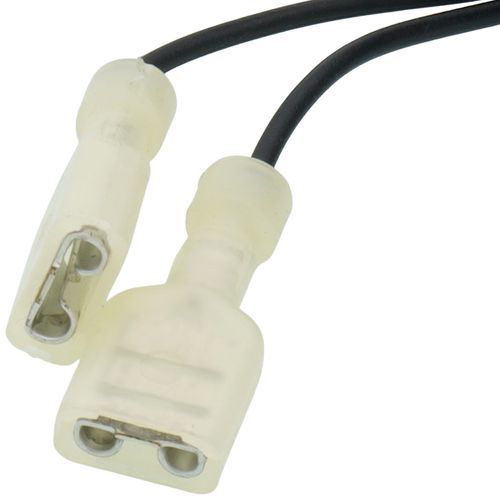

- 1/4" quick-connects for fast, secure installation
- 79" (6'7") lead length for easy routing
- Calibrated 70–100°F (21–38°C) sensing range
- Thermistor potted in an aluminum tip; 24-AWG stranded, PVC-insulated zip cord
Technical specifications
- Product type: Temperature sensor probe (accessory for ICM325A)
- Temperature range: 70–100°F (21–38°C)
- Lead length: 79 in (6 ft 7 in)
- Terminations: 1/4" quick-connects (2x)
- Cable: 24-AWG stranded, PVC-insulated zip cord, black
- Tip construction: Thermistor potted in aluminum housing
Compatibility & applications
- Compatible with: ICM Controls ICM325A head pressure control
- Use for condenser fan/head-pressure control on heat pumps and A/C systems using the ICM325A
What’s in the box
- ICM-ICM386 sensor probe (79") with quick-connects and mounting strap
Installer notes
- Mount the probe where it can accurately sense the target temperature specified by the ICM325A instructions. Verify secure connections on the 1/4" terminals and dress the lead away from moving parts and hot surfaces.
10K Thermistor w/.250" QC
