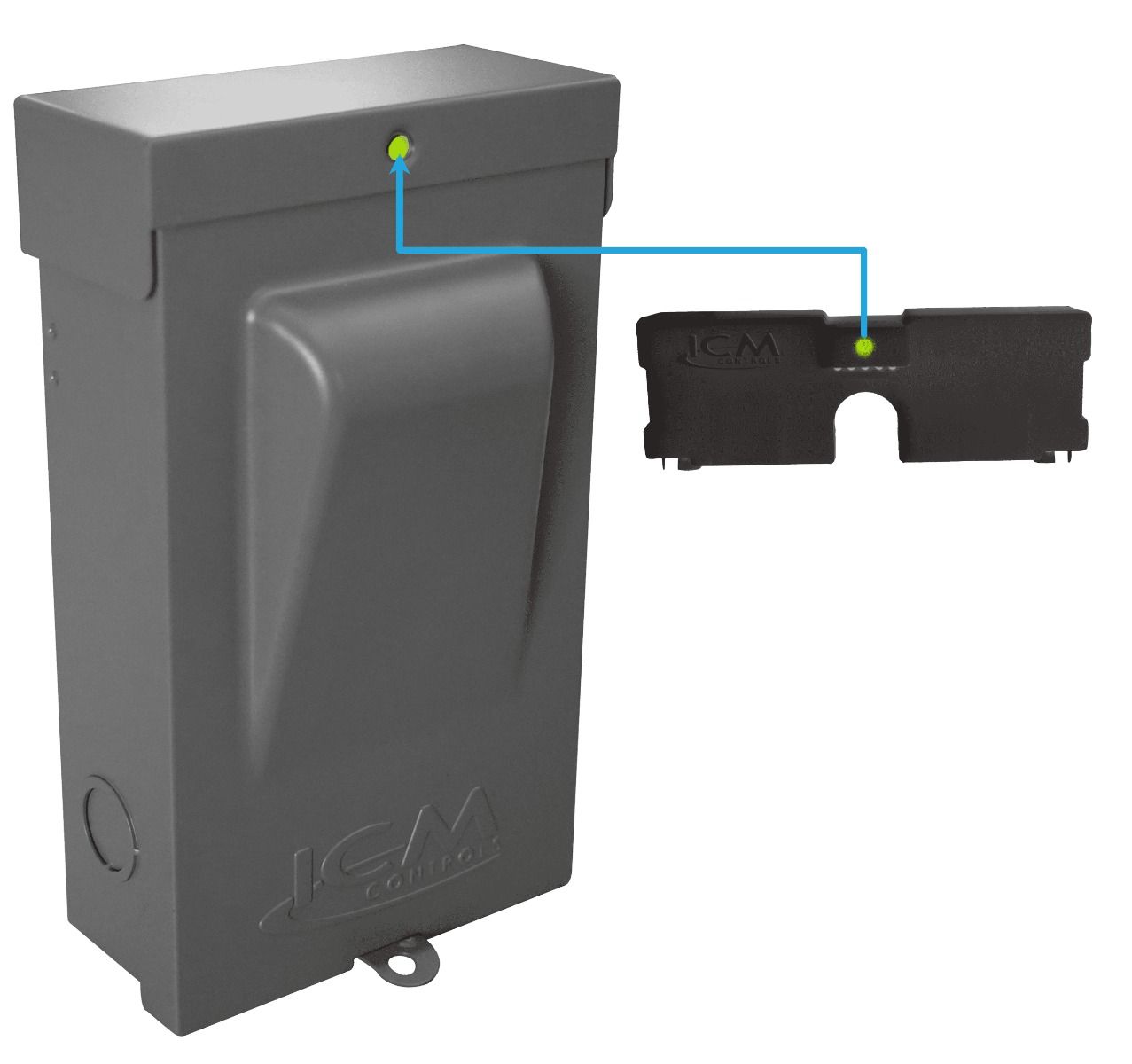

ICM-ICM495-60A — 60A Non-Fused Disconnect with Built-In Type 2 Surge Protection (UL Listed)
Protect outdoor HVAC equipment with a durable, NEMA 3R, UL-listed disconnect that integrates a field-replaceable Type 2 SPD. The ICM-ICM495-60A (non-fused) helps guard condensers, heat pumps, and mini-splits from damaging voltage transients while providing a clean, code-friendly service disconnect at the unit.
Key Features
- 60A non-fused AC disconnect with integrated surge protective device (SPD)
- 100 kA maximum surge current; nominal discharge current In = 20 kA
- TFMOV thermal protection and green LED status indicator
- NEMA/Type 3R powder-coated metal enclosure for indoor/outdoor use
- For 120 VAC single-phase and 240 VAC split-phase applications, factory-wired for fast installs
Technical Specifications
- Service voltage: 120 VAC (1-phase) / 240 VAC (split-phase)
- Short-circuit current rating (SCCR): 10 kA
- Max surge current: 100 kA; Nominal discharge current In = 20 kA
- MCOV: L-L 300 VAC, L-G 150 VAC
- VPR (typical): L-L 1200 V, L-N 700 V
- Frequency: 50/60 Hz
- Enclosure: NEMA/Type 3R
- Diagnostics: Green LED = protection present
- Dimensions: 9.0" L × 5.25" W × 2.50" D
- Compliance: ANSI/UL 1449 (5th Edition), cULus Listed
- Model family: ICM495-30A (fused) and ICM495-60A (non-fused)
Recommended Uses
- Outdoor condensing units, heat pumps, package units, and mini-splits needing both a local disconnect and surge protection
- Residential and light commercial installations where transient protection and quick service access are priorities
What’s Included
- ICM-ICM495-60A non-fused disconnect with internal, field-replaceable SPD
- Pre-wired enclosure with pull-out shunt
Installation & Notes
- Install within sight of the equipment and follow all applicable electrical codes
- Use 14 AWG stranded copper or larger conductors as required
- If the green LED is off, the SPD module has reached end-of-life—replace with ICM495-SUB to restore protection
