ICM Controls ICM517A-LITE-12 - Split-Phase Type 2 Surge Protective Device (12-Pack)
ICM Controls ICM517A-LITE-12 - Split-Phase Type 2 Surge Protective Device (12-Pack)
ICM Controls ICM517A-LITE-12 — Split-Phase Type 2 Surge Protective Device (12-Pack)
ICM Controls ICM517A-LITE-12 – Type 2 SPD, NEMA 4X, 60kA (12-Pack)
Contractor 12-pack of ICM517A-LITE Type 2 surge protectors for 120/240V split-phase systems. NEMA 4X, 60kA, 612J, LED status, UL 1449 5th, made in USA; includes counter display.
Overview
The ICM517A-LITE-12 is a contractor multi-pack of twelve compact, split-phase Type 2 SPDs designed to protect 120/240V equipment from damaging voltage spikes. Each unit features a NEMA 4X weather-resistant enclosure for indoor/outdoor mounting, LED protection status, and TMOV technology—ideal for HVAC/R, appliances, mini-splits, motors, and general electronics. Designed and assembled in the USA.
What’s Included
- 12 × ICM517A-LITE surge protection devices

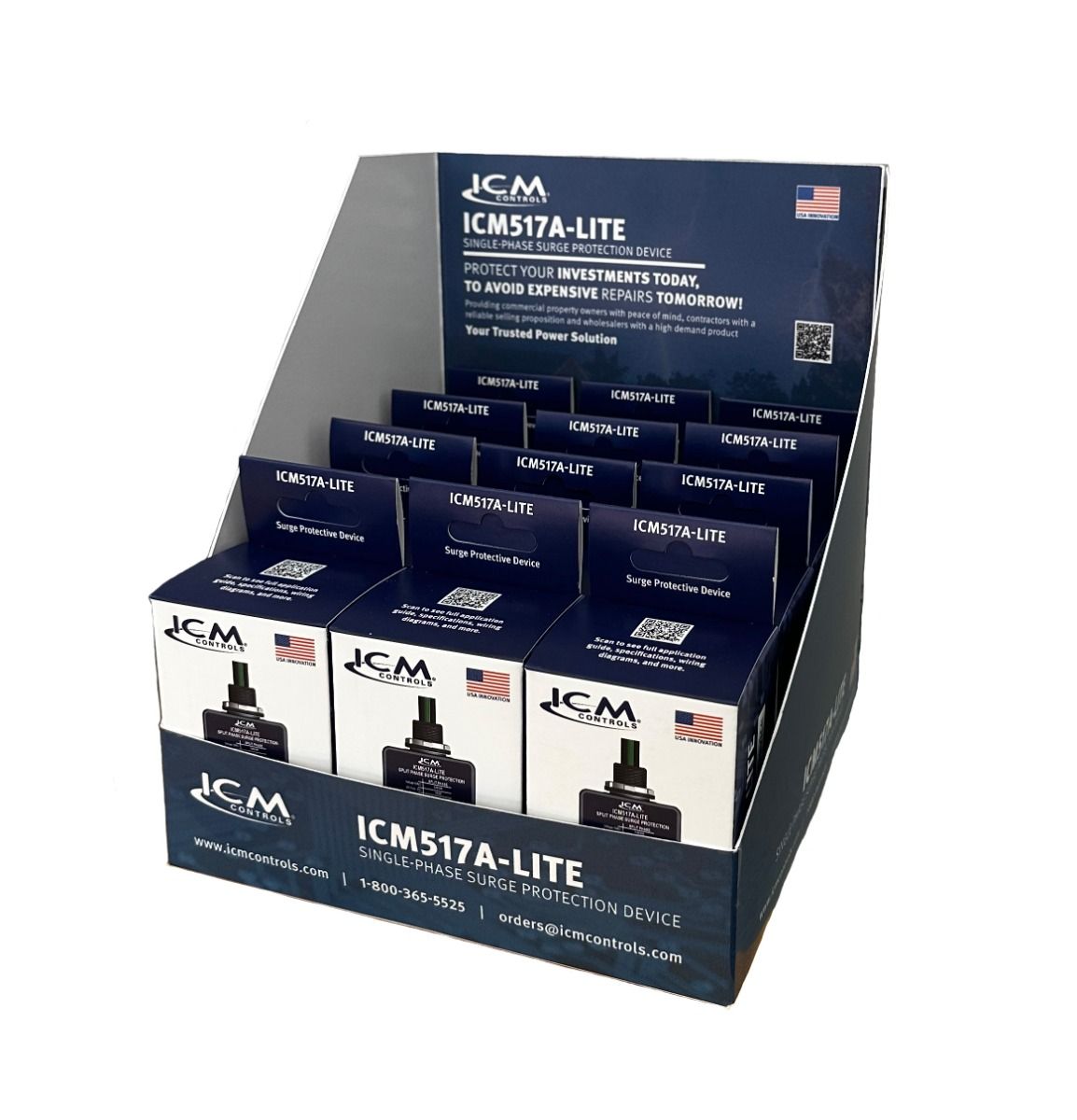

- Counter display box for merchandising
Key Features
- Type 2 surge protective device for split-phase (120/240V) systems
- Maximum surge current: 60,000 A; Energy dissipation: 612 J
- NEMA 4X enclosure; indoor/outdoor, ultrasonically welded design
- LED status indicator (“Protection when lit”) for quick diagnostics
- TMOV technology for safe, reliable surge handling
- UL 1449 (5th ed.) listed (UL file E347279)
- 3-year product warranty and $25,000 connected-equipment warranty
- Made in the USA
Technical Specifications
- Service Voltage: 120/240 VAC, single phase (split phase)
- Modes of Protection: L-L, L-G
- Voltage Protection Rating (typ.): L-G 600 Vpk, L-L 800 Vpk
- MCOV: L-G 130 VAC, L-L 260 VAC
- SCCR: 10 kA
- Enclosure: NEMA Type 4X (plastic); ½" conduit connection
- Dimensions / Weight (per unit): 3.75" L × 2.25" W × 1.02" D, 0.25 lb
- Operating Temp: -40°C to 80°C
- Installation Point: Electrical panel, disconnect, or enclosure; install ahead of equipment by a licensed pro per code Applications HVAC condensers & air handlers, mini-splits, refrigeration, motors, appliances, pool & spa, marine/RV, and general residential/commercial electronics.
12-pack value bundle includes 12 individual units of ICM517A-LITE conveniently packaged in a single display box. See ICM517A-LITE for more product detail
