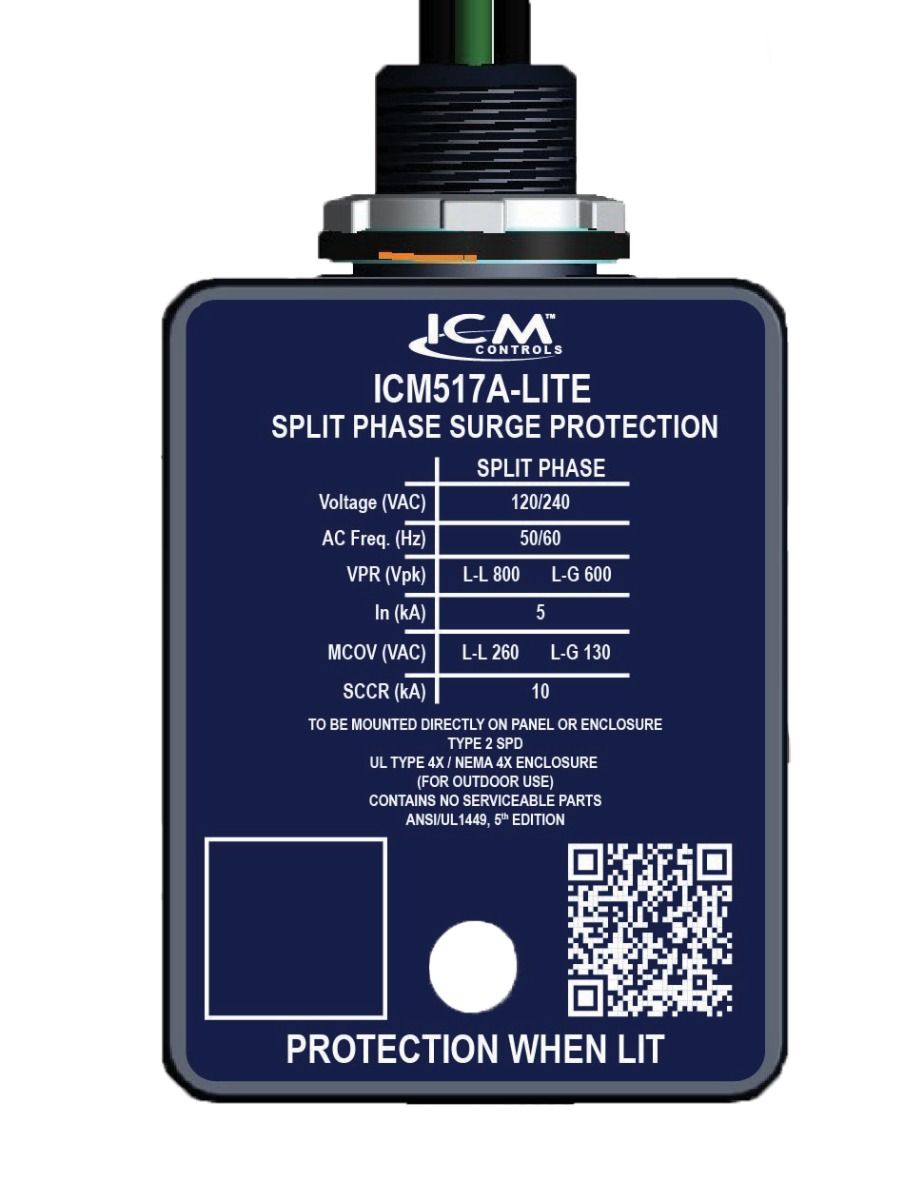

ICM-ICM517A-LITE Split-Phase Type 2 Surge Protective Device (SPD) — 120/240V, 60kA, NEMA 4X, Compact
Protect your HVAC and mini-split systems from damaging voltage spikes with the ICM-ICM517A-LITE. This compact, split-phase Type 2 SPD installs at the panel or A/C disconnect to safeguard motors, control boards, compressors, appliances, and sensitive electronics. A rugged NEMA Type 4X waterproof enclosure supports indoor or outdoor use, while a green status LED provides at-a-glance protection confirmation.
Key Features
- 60,000A maximum surge capacity; 612 joules energy dissipation
- 120/240V split-phase, single-phase protection (L-L, L-G modes)
- Type 2 SPD (UL rated) for residential/light commercial applications
- NEMA 4X sealed enclosure for wet locations; indoor/outdoor ready
- Compact, thin profile for tight installs; 1/2" conduit connection
- Status LED indicates active surge suppression
- Wide ambient range: -40°C to 80°C; SCCR 10kA
- Designed and assembled for dependable HVAC protection
Applications
Mini-split and conventional air conditioners, heat pumps, refrigeration equipment, furnaces/air handlers, and other single-phase 120/240V appliances and electronics.
Mini-split and conventional air conditioners, heat pumps, refrigeration equipment, furnaces/air handlers, and other single-phase 120/240V appliances and electronics.
Technical Specs
- Service Voltage: 120/240 VAC, single phase
- Max Surge Current: 60,000A
- Energy Rating: 612 J
- Protection Modes: L-L, L-G
- Enclosure: NEMA Type 4X (waterproof)
- Conduit Hub: 1/2"
- Dimensions/Weight (approx.): 3.75" L × 2.25" W × 1.02" D, 0.25 lb
- Short-Circuit Current Rating (SCCR): 10 kA
- Indicator: Green LED (protection present)
Installation Notes
Mount directly to the electrical panel/disconnect (load side), keep leads short with minimal bends, and follow national/local codes. Installation by a licensed electrician or qualified HVAC technician is recommended. Periodically verify the LED; replace the unit if power is present and the LED is off.
120/240 VAC, compact single phase surge suppressor, max surge current 60,000 amps, max energy dissipation 612 joules, waterproof enclosure, designed & assembled in USA
