The ICM-ICM6500-1 is a microprocessor-based controller for electric heat and hydronic fan-coil systems. It sequences the blower, water-circulation pump, valve, auxiliary relay, and cooling fan with precise built-in timing. “Combo w/ fuse” variant for added protection.
Key features
- Works with electric heat or hot-water (hydronic) fan-coil systems; supports blower control for cooling cycles
- Microprocessor control with accurate fan on/off delays
- Combo w/ fuse version for integrated protection
- Field-selectable timings; consistent comfort and equipment protection
- Direct replacement for many legacy controls, including ICM6500 and Vtronics R200A; commonly cross-referenced as York S1-ICM6500-1
- Low-profile board, clearly labeled terminals for faster installs
- Input power: 24 VAC control; 120/240 VAC load outputs, 50/60 Hz
- Blower fan output: up to 9.8 FLA at 120/240 VAC
- Water pump output: up to 1.5 FLA at 120/240 VAC
- Valve/boiler output: 24 VAC, up to 5 A
- Factory timings (typical): Fan on 0 s; Fan off 45 s; Heat fan on 90 s; Heat fan off 20 s
- Ambient operating range: −40 °F to 167 °F (−40 °C to 75 °C)
- Fan-coil units and air handlers using electric strip heat or hot-water coils
- Replacement/upgrade where ICM6500 or Vtronics R200A was used; often listed as York S1-ICM6500-1
- Always verify wiring, load ratings, and timing against your equipment documentation

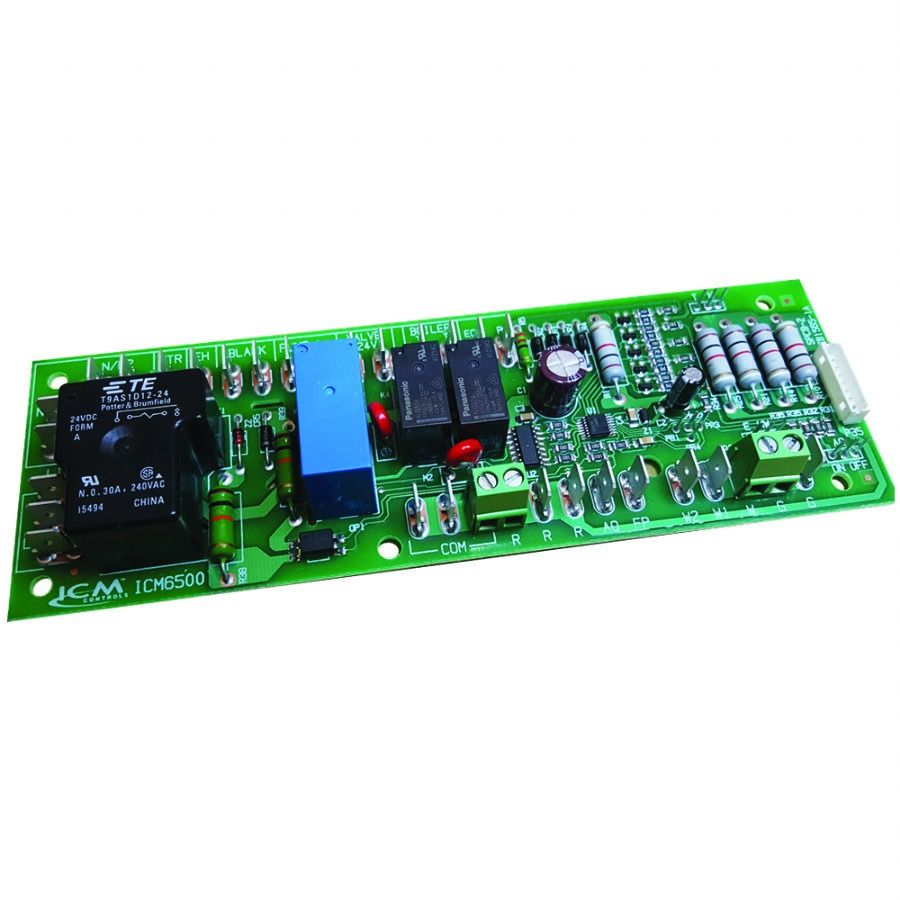

- ICM-ICM6500-1 control board (combo w/ fuse)
