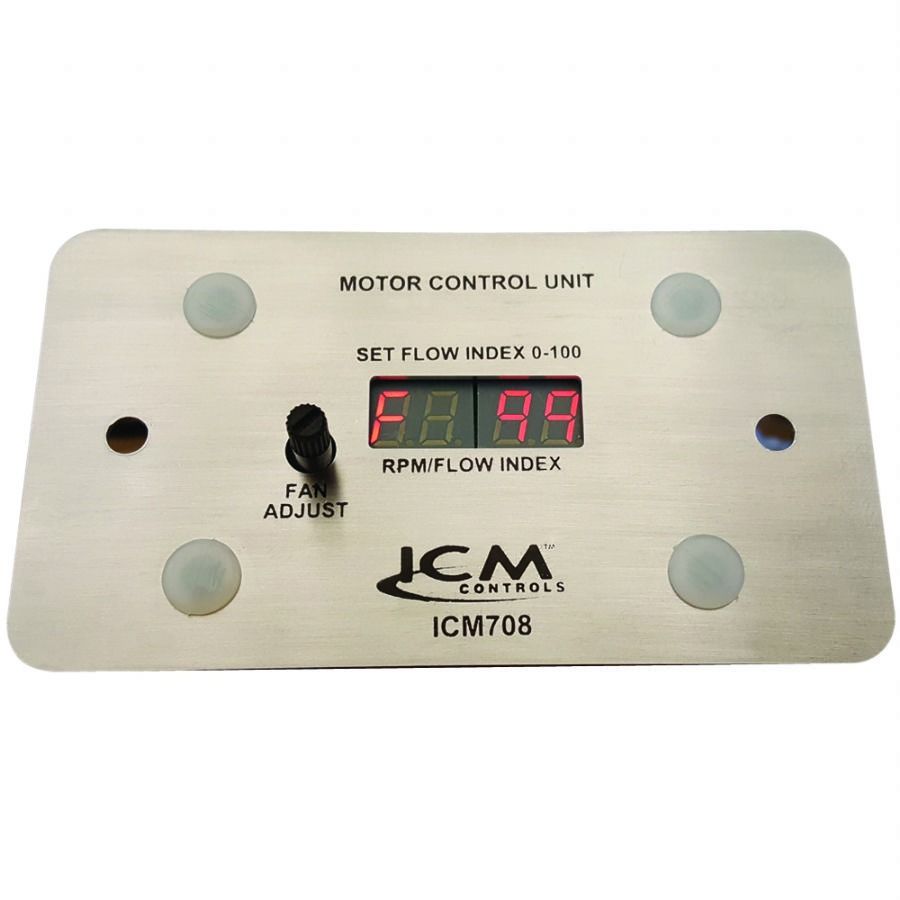

ICM Controls ICM708 - GE 2.3 ECM Motor Speed Controller (PWM, 18–30 VAC)
ICM Controls ICM708 - GE 2.3 ECM Motor Speed Controller (PWM, 18–30 VAC)
The ICM-ICM708 is a dedicated controller for GE 2.3 ECM blower motors, delivering precise airflow/CFM control via an onboard potentiometer that adjusts the flow-index from 0–100%. It provides LED RPM feedback and drives the motor with a 14 VDC, 80 Hz PWM signal; power input is 18–30 VAC. Made in USA.
Key Features
- Designed specifically for GE 2.3 ECM motors (not for PSC/X13).
- 0–100% flow-index adjustment using the front-panel dial for quick commissioning and balancing.
- LED RPM/flow display for live diagnostics and setup verification.
- PWM output: 14 VDC at 80 Hz; RPM input: 5 VDC.
- Supply voltage: 18–30 VAC (typ. 24 VAC).
- Replaces: EVO/ECM-VCU-36-mp.
- Made in USA.
Technical Specifications
- Model: ICM-ICM708
- Motor type: GE 2.3 ECM (electronically commutated)
- Control range: 0–100% flow index (potentiometer)
- Power input: 18–30 VAC
- RPM input: 5 VDC
- PWM output: 14 VDC, 80 Hz; ON/OFF output also 14 VDC
Applications
- Air handler and furnace air-balance and commissioning
- Retrofits where precise blower speed control is needed on GE 2.3 ECM systems
- Service diagnostics and verification with onboard RPM/CFM indication
Compatibility / Cross-Reference
- For: GE 2.3 ECM motors only (platform-specific)
- Replaces: EVO/ECM-VCU-36-mp controller
What’s Included
- ICM-ICM708 control module (with front panel display/adjustment)
- Manufacturer install/spec sheet (in packaging)
SEO Keywords (sprinkle naturally)ICM-ICM708, ICM 708, GE 2.3 ECM controller, ECM motor speed control, blower speed controller, PWM 80Hz ECM, 24VAC ECM control, airflow balancing controller.FAQQ: Will this work on PSC or X13 motors?
A: No. The ICM708 is engineered for GE 2.3 ECM motors only.Q: What power does it need?
A: 18–30 VAC (typical 24 VAC). The RPM feedback is 5 VDC, and the PWM drive is 14 VDC at 80 Hz.Q: Can it help with air balance?
A: Yes—its 0–100% flow-index adjustment and RPM display make it ideal for fine-tuning airflow during commissioning and service.
Low current Pulse Width Modulated signal for controlling the speed of a GE 2.3 ECM
| Package Quantity | 1 Item |
|---|---|
