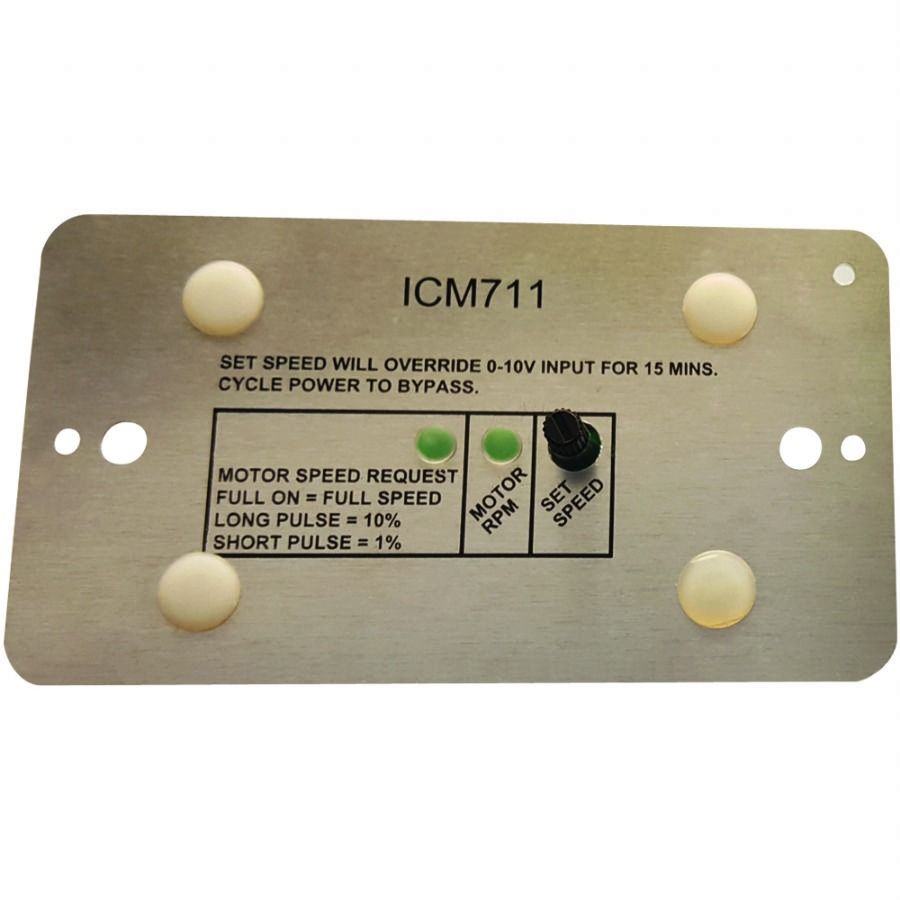

ICM-ICM711 GE 2.3 ECM Motor Speed Controller
Overview:
The ICM-ICM711, also known as the GE 2.3 ECM Controller, is designed for precise and efficient control of ECM blower motors in HVAC systems. It provides both manual and automatic control options, making it ideal for air handlers, furnaces, and blower modules. Built with OEM-level reliability, this controller ensures consistent performance, energy efficiency, and long service life.
Key Features & Benefits
- Dual Control Modes – Operates manually via potentiometer (0–10 VDC) or automatically through a 0–10 V input signal.
- Real-Time Feedback – LED indicator for motor RPM and 0–10 V output feedback signal for system integration.
- Wide Power Range – Accepts 18–30 VAC at 60 Hz for broad HVAC compatibility.
- Reliable Output Control – Provides PWM On/Off output up to 10 mA for accurate motor regulation.
- Compact & Lightweight – Easy to install in tight system configurations.
- OEM Compatibility – Specifically engineered for GE 2.3 ECM systems.
Technical Specifications
- Model: ICM-ICM711 (GE 2.3 ECM Controller)
- Input Voltage: 18–30 VAC, 60 Hz
- Control Input: 0–10 VDC (potentiometer or external control signal)
- Output: PWM On/Off, max 10 mA
- Feedback Output: 0–10 VDC signal + LED RPM indicator
- Dimensions: 4.25″ (H) × 2.25″ (L)
- Weight: Approx. 0.09 lb
Applications
- Air handlers
- Furnace blower modules
- HVAC blower motor retrofits
- GE 2.3 ECM motor systems
GE 2.3 ECM controller Replaces: ECO/ECM-ACU-S1
| Package Quantity | 1 Item |
|---|---|
