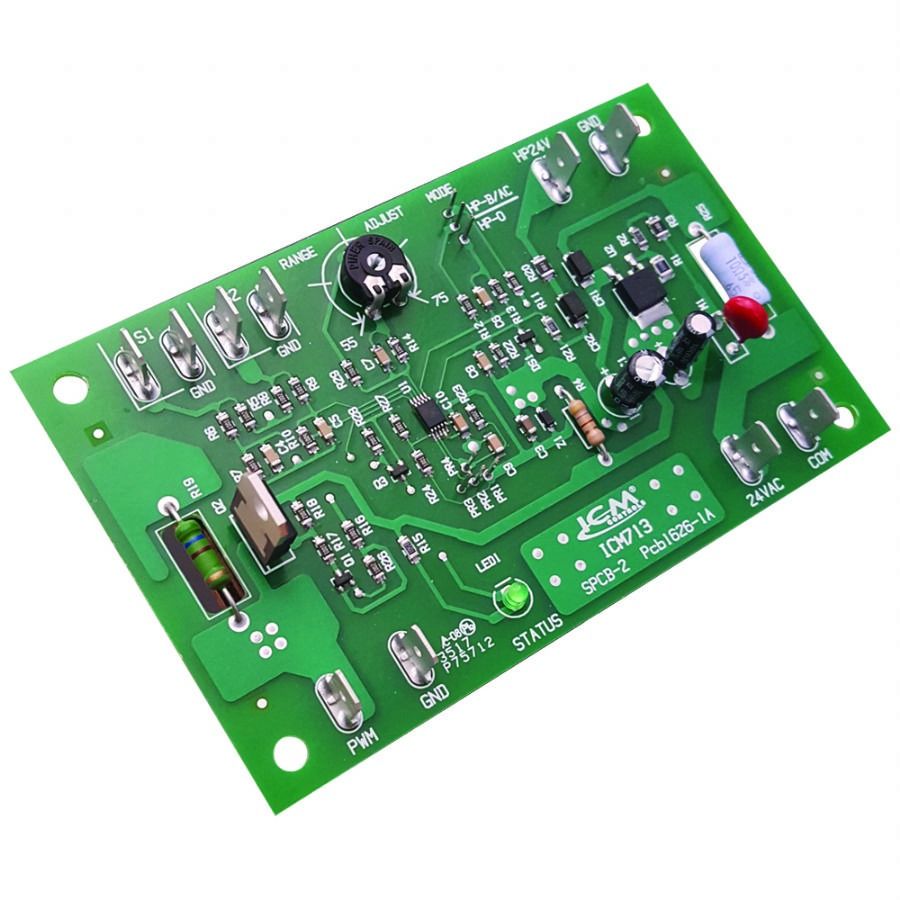

ICM-ICM713-LF ECM Motor Speed Control (Lead-Free)
The ICM-ICM713-LF is a low-voltage, lead-free ECM (Electronically Commutated Motor) controller engineered to provide precise speed control and enhanced efficiency for HVAC systems. Designed for durability and compliance, it ensures long-lasting performance while reducing energy consumption.
Key Features:
- Model: ICM-ICM713-LF (Lead-Free version)
- Control Type: PWM-based electronic control for smooth ECM motor speed modulation
- Temperature Inputs: Single or dual temperature sensor inputs (10 KΩ NTC, J-Curve)
- Motor Feedback: Displays RPM/CFM for diagnostics and performance monitoring
- HVAC Applications: Ideal for air balancing, performance tuning, and energy savings
- Lead-Free Compliance: Manufactured with eco-conscious, lead-free materials
Technical Specifications:
- Input Voltage: 18 VAC to 30 VAC (50/60 Hz)
- Output: 13.5 VDC at up to 10 mA; operational frequency up to 80 Hz; adjustable duty cycle (0–100%)
- Operating Temperature Range: –40 °F to 158 °F (–40 °C to 70 °C)
- Storage Temperature Range: –40 °F to 185 °F (–40 °C to 85 °C)
- Temperature Sensor Compatibility: 10 KΩ NTC, J-Curve probes
Physical Dimensions & Weight:
- Dimensions (L × W × H): 4.72 in × 3.00 in × 0.68 in (≈ 120 × 76 × 17 mm)
- Weight: 1.00 lb (≈ 0.45 kg)
Benefits:
- Improves HVAC efficiency with precise PWM motor control
- Reduces short cycling and mechanical wear on components
- Compact and easy to install in standard HVAC control panels
- Lead-free design for safe and environmentally responsible use
Typical Applications:
The ICM-ICM713-LF is ideal for air conditioners, heat pumps, high-velocity HVAC systems, and other applications requiring accurate ECM motor control, improved airflow, and reduced energy costs.
ECM Head Pressure Control , OEM Replacement: Hoffman 880-ECM(10)SSHP
