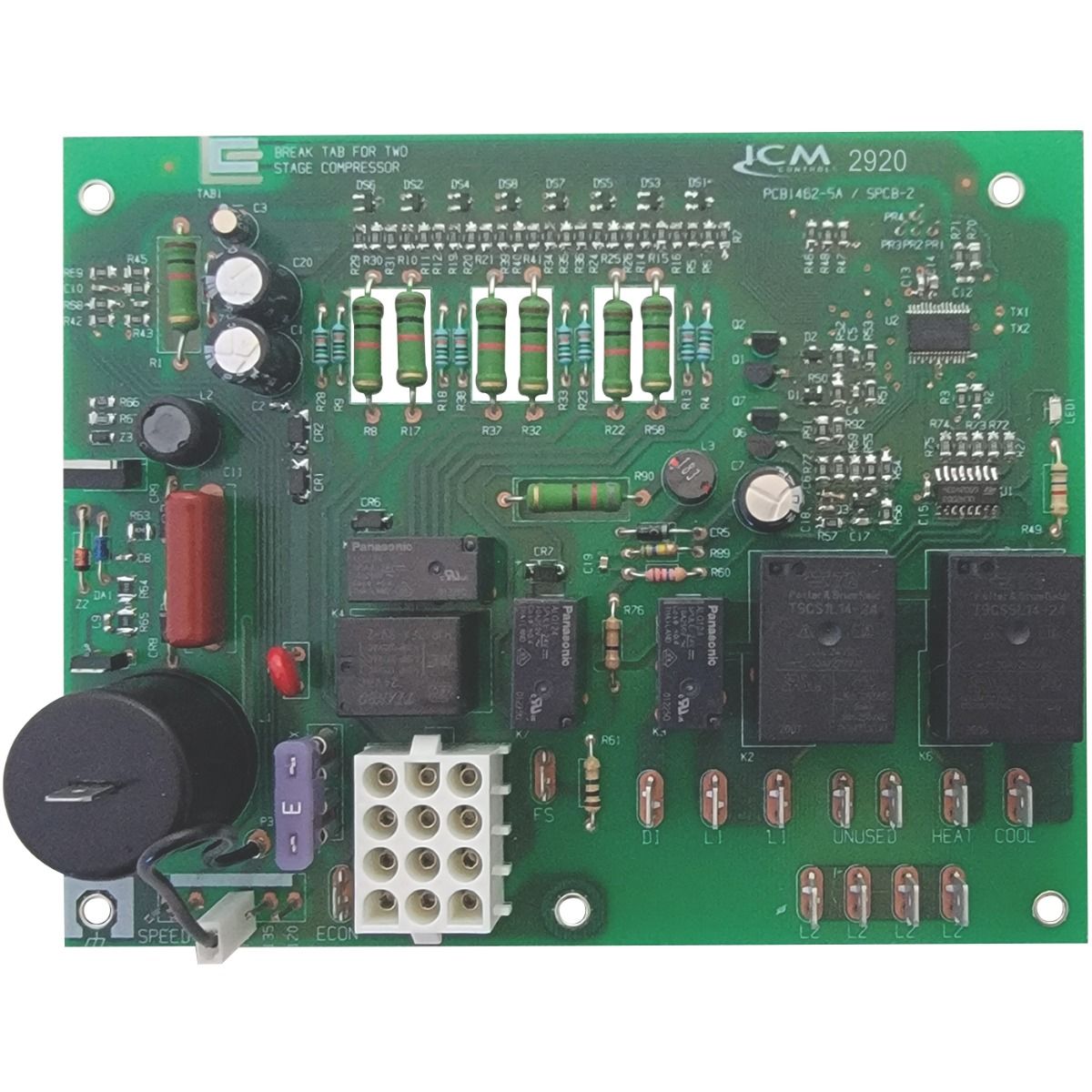

The ICM2920 Ignition Control Board from ICM Controls is a high-performance OEM replacement for select Goodman integrated furnace control boards. Engineered to deliver precise gas ignition and comprehensive safety monitoring, it manages the full ignition sequence including inducer control, pressure switch status, spark ignition, gas valve activation, flame sensing, and blower operation.

Ideal for HVAC professionals, the ICM2920 is a form, fit, and functional replacement for Goodman OEM part numbers PCBAG123 and PCBAG123S. This reliable board not only powers cooling compressors but also helps prevent short-cycling and system failures with built-in diagnostics and safety lockouts.

Key Features:

• OEM replacement for Goodman control boards (PCBAG123, PCBAG123S)

• Controls blower motors, gas valve, and spark ignitor in sequence

• Powers cooling compressor and prevents short cycling

• Selectable heat blower off-delay time for optimized comfort

• Supports 2-stage cooling when tab is removed

• LED flash codes for fast and accurate troubleshooting

• Safety lockout disables heat after repeated ignition failures or flame loss

• Fully monitors high limit, rollout, and auxiliary limit circuits

Specifications:

• Line Voltage: 24VAC (RMS), 50/60 Hz

• Control Voltage: 18–30 VAC, 0.15A max

• Fuse Rating: 3A

• Relay Outputs:

  • Heat/Cool N.O. & N.C.: 24 VAC

  • Inducer: 24 VAC

  • Gas Valve: 1.5A @ 24 VAC pilot duty

  • Compressor Contactor: 1.0A @ 24 VAC

• Dimensions: 6.50” L x 5.15” W x 3.00” D

• Weight: 0.46 lbs

Replaces:
Goodman part numbers: PCBAG123, PCBAG123S (Direct Spark Ignition Controls)
