Lennox 10F68 - (103825-01) RectorSeal SS500EP Safe-T-Switch – Condensate Overflow Protection Switch

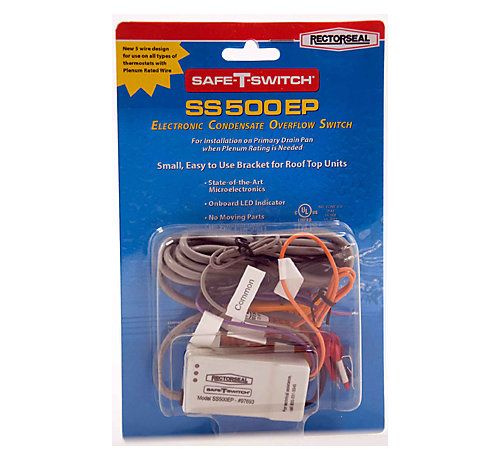

The Lennox 10F68 includes the RectorSeal SS500EP, a high-performance Safe-T-Switch engineered to protect air conditioning systems from condensate overflow. This dependable float switch monitors rising water levels in the primary drain pan and automatically shuts off the HVAC system to prevent water-related damage to ceilings, walls, or flooring.
Key Specifications:
- Manufacturer: RectorSeal
- Model: SS500EP (Safe-T-Switch)
- Lennox Part Number: 10F68 / 103825-01
- Switch Type: Normally open float switch
- Voltage Rating: 24V AC
- Current Rating: 5 Amps max resistive load
- Dimensions: Compact profile for tight spaces
- Sensor: Integrated float with magnetic reed switch
- Mounting: Installs directly in the auxiliary drain port of the evaporator coil or primary drain pan
- Approvals: UL recognized
- Reset Method: Manual after water is cleared
Features and Benefits:
- Prevents Water Damage: Shuts down HVAC unit upon detecting clogged drain or high water levels.
- Tool-Free Installation: No cutting of drain lines or special tools required.
- Universal Fit: Compatible with most horizontal and vertical systems.
- Maintenance Friendly: Easy access for testing and service.
- Fail-Safe Design: Helps meet local and national building codes for condensate management.
Applications:
- Residential and light commercial split systems
- Fan coil units, air handlers, and furnaces with evaporator coils
- Ideal for installations where space is limited
Protect your customers’ property and your HVAC systems with the Lennox 10F68 Safe-T-Switch. Available now at Beenimax.com—your trusted source for professional-grade HVAC parts.
