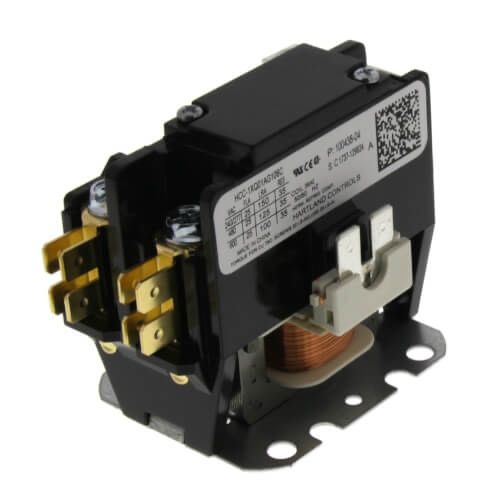

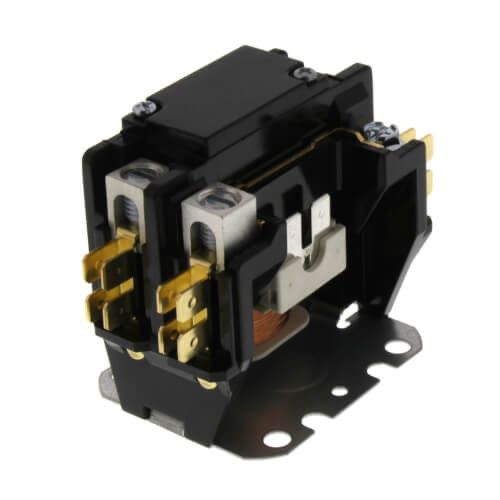

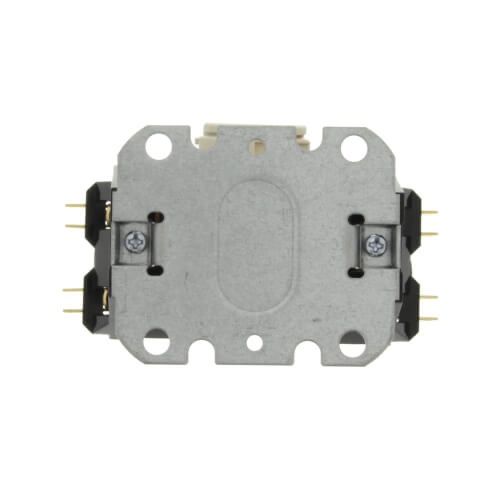

Lennox 10F73 - ( 100438-04 ) Definite Purpose Contactor, 25 Amp, 1-Pole, 24 VAC 60/50 Hz Coil
Lennox 10F73 - ( 100438-04 ) Definite Purpose Contactor, 25 Amp, 1-Pole, 24 VAC 60/50 Hz Coil
The Lennox 10F73 (Part #100438-04) is a definite purpose contactor engineered for reliable control of HVAC systems. Designed to manage high-current loads such as compressors and fan motors, this contactor ensures dependable operation in both residential and commercial applications.
Key Specifications:
- Coil Voltage: 24 VAC, 50/60 Hz
- Amperage Rating: 25 FLA (Full Load Amps), 150 LRA (Locked Rotor Amps) at 240V
- Poles: Single Pole (SPST – Normally Open)
- Switch Type: Single-Pole Single-Throw (SPST)
- Shunt: Included
- Terminal Connections: 1/4" Quick Connect
- Dimensions: 3.26" W x 2.5" D x 2" H
- Weight: 0.5 lbs
Compatibility:
This contactor is a genuine OEM replacement part for various Lennox models and is also compatible with select Allied, Armstrong, Concord, and Ducane systems. It replaces part numbers including 95M55, 100438-01, and 20F7201.
Applications:
Ideal for controlling HVAC components such as:
- Compressors
- Condenser fan motors
- Electric heaters
- Other high-current HVAC loads
Ensure your HVAC system operates efficiently with the Lennox 10F73 Definite Purpose Contactor. Its robust construction and OEM quality make it a reliable choice for maintenance and repairs.
Note: Always verify compatibility with your specific HVAC model before installation.
