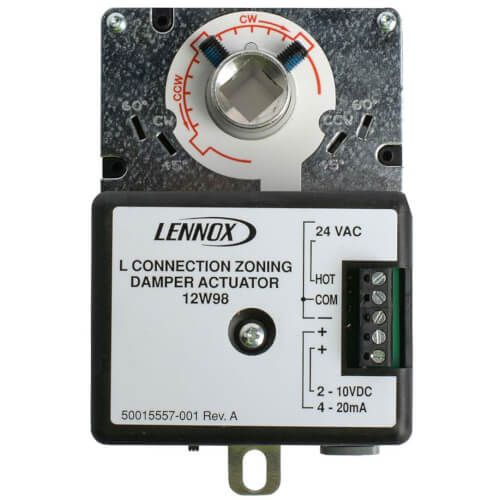

Lennox 12W98 - 24V Non-Spring Return Actuator, 4-20mA / 2-10VDC Control, 35 PSI
Ensure precise airflow regulation and dependable HVAC performance with the Lennox 12W98 Non-Spring Return Actuator. Engineered for high-efficiency systems, this actuator is designed to operate with modulating signals, delivering accurate positioning for dampers and valves in commercial and residential setups.
Key Features:
- Model: 12W98
- Voltage: 24V
- Unit Controller Compatibility: Prodigy® Unit Controller - All versions (requires optional VAV Module Kit)Units Without Prodigy® Unit Controller: Network Thermostat Controller Bypass Controller requiredAnalog Inputs: 2-20VDC; 4-20mAOperating Environment: Temperature: 20° to 125°FHumidity: 10% - 95% RH, non- condensingPower Requirements: 24VAC (+/–20%), 50/60Hz, 4.8VA (class 2 transformer required)Torque: 35 in./lbs.Stroke: Selectable 45°, 60° and 90°Rotation: Clockwise and counter-clockwiseStroke Time: 90 Seconds for 90°Dimensions (H x W x D): 4-7/8 x 3-3/8 x 2-7/8"
- Control Signals: Accepts both 4-20mA and 2-10VDC input for flexible integration with various control systems
- Design: Non-spring return, ideal for applications where the actuator remains in its last position after power loss
- Maximum Operating Pressure: 35 PSI
- Reliable Modulation: Offers smooth and precise damper or valve control, essential for optimizing comfort and energy efficiency
- Durable Construction: Built to meet the rigorous demands of HVAC environments
Whether you're retrofitting a system or designing a new installation, the Lennox 12W98 delivers consistent performance and versatile control. Compatible with Lennox and other industry-standard HVAC setups.
