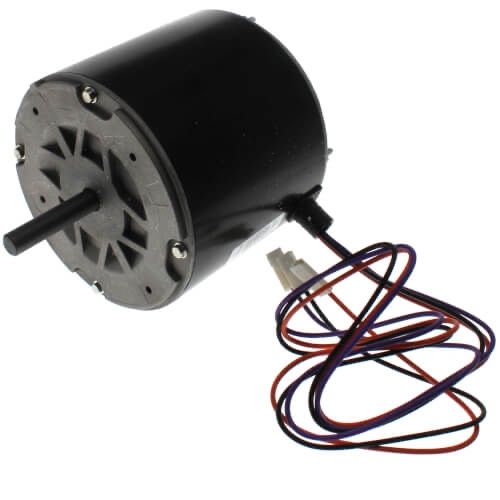

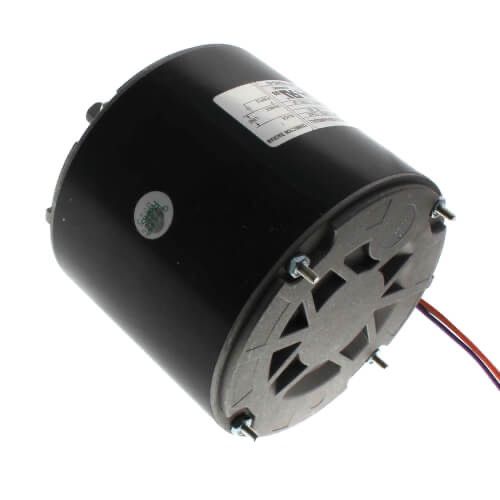

Lennox 12Y65 ( 100483-43 ) Condenser Fan Motor, 1/4 HP, 208/230V-1Ph, 825 RPM
Lennox 12Y65 ( 100483-43 ) Condenser Fan Motor, 1/4 HP, 208/230V-1Ph, 825 RPM
Verified Specifications for Lennox 12Y65 Condenser Fan Motor
- Horsepower: 1/4 HP
- Voltage: 208–230V
- Amperage: 1.7A
- Speed: 825 RPM
- Phase: Single Phase
- Rotation: Counterclockwise from lead end (CCWLE)
- Frame Size: NEMA 48Y
- Mounting Type: Stud
- Shaft Dimensions: 1/2" diameter x 1.5" length
- Bearing Type: Ball Bearing
- Insulation Class: B with auto-reset overload protection
- Capacitor Required: 10 MFD @ 370
Replaces Lennox and Allied Part Numbers
The 12Y65 motor is a direct replacement for several part numbers, including:
- Lennox: 92W75, 100483-43, 100483-34
- Allied/Armstrong/Ducane: 49W86, 97M51, R100483-05, R100483-24
Application & Compatibility
This motor is designed for use in Lennox residential and light commercial air conditioning systems. Its OEM-grade construction ensures compatibility and reliable performance in systems requiring a 1/4 HP, 825 RPM condenser fan motor.
Installation Note
When replacing the condenser fan motor, it is highly recommended to replace the capacitor simultaneously to ensure optimal performance and prevent premature motor failure. The required capacitor for this motor is 10 MFD @ 370 VAC.
If you need further assistance or have additional questions about this motor or its compatibility with your HVAC system, feel free to ask!
