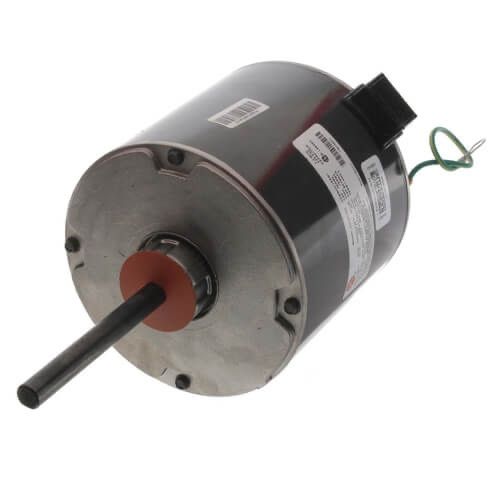

Lennox 13H36 - Condenser Fan Motor, 1/4 HP, 208/230V-1Ph, 825 RPM
Brand: Lennox
Catalog Number: 13H36
Model/Part Number: 13H3601
Minimum Order Quantity: 0.0
Base Unit of Measure: Unit(S)
Material Description: Nidec Motor 13H3601 Condenser Fan Motor, 1/4 HP, 208-230 Volts, 825 RPM
Product Height: 10.25 IN
Horsepower: 1/4 HP
Type: PSC
Diameter: 5.6 IN
Gross Weight: 17.25 LB
Bearing Type: Sleeve
Hertz: 60 hz
Phase: 1 Phase
Shaft Length: 3.5
Country of Origin: Mexico
Core Product: No
Speed: 1
Voltage Phase: 208/230-1
NEMA Frame Size: 48
Rotation: CCW from lead end
Shaft Diameter: 0.5
Motor Type: PSC
Motor Type: PSC
RPM: 825 RPM
Motor HP: 1/4 HP
Number of Speeds: 1 Speed
Frame Size: 48
Motor Voltage: 208-230 VAC 1 Ph 60 Hz
Capacitor Value: 7 MFD 370 VAC
Rotation: CCWLE
Bearing Type: Sleeve
Lennox 13H36 - Condenser Fan Motor, 1/4 HP, 208/230V-1Ph, 825 RPM
The Lennox 13H36 condenser fan motor is a high-quality OEM replacement designed for efficient and reliable operation in residential and light commercial HVAC systems. With a 1/4 HP motor, operating at 825 RPM and compatible with 208/230V single-phase power, this motor ensures optimal airflow and heat dissipation from the condenser unit.
Engineered for durability and performance, the 13H36 is ideal for restoring proper cooling function in Lennox systems. Whether you’re replacing a failing motor or performing preventative maintenance, this part helps extend the lifespan of your unit and maintain energy-efficient performance.
Key Features:
- OEM Lennox condenser fan motor
- 1/4 horsepower, 825 RPM speed
- 208/230V, single-phase operation
- Ensures consistent condenser airflow
- Built for reliability in demanding environments
Trust Beenimax.com for genuine Lennox replacement parts, fast shipping, and excellent customer support—perfect for HVAC professionals and DIY users alike.
| Package Quantity | 1 Item |
|---|---|
| Item Returns | This item can be returned |
