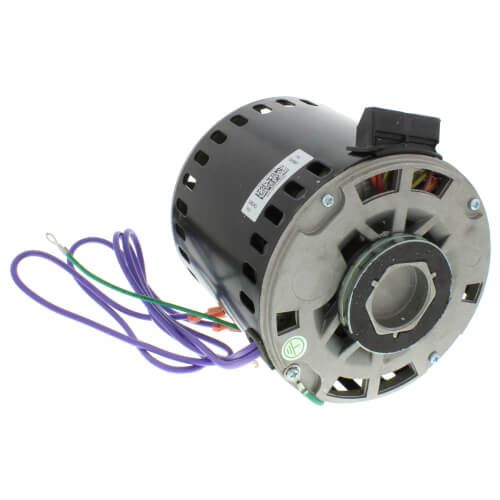

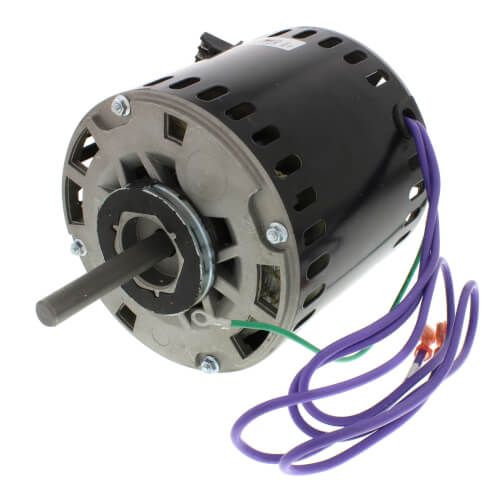

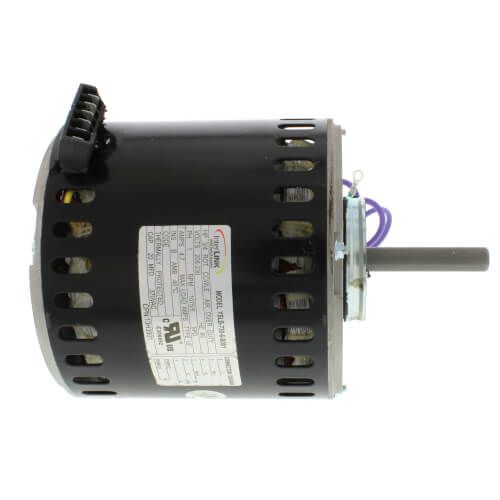

Lennox 13H39 - Blower Motor, 3/4 HP, 208/230V-1Ph, 5 Speed, 1075 RPM

Brand:
Reviews (0)
SKU
13H39
Lennox 13H39 - Blower Motor, 3/4 HP, 208/230V-1Ph, 5 Speed, 1075 RPM
Lennox 13H39 - Blower Motor, 3/4 HP, 208/230V-1Ph, 5 Speed, 1075 RPM
Lennox 13H39 - Blower Motor, 3/4 HP, 208/230V-1Ph, 5 Speed, 1075 RPM
Lennox 13H39 - Blower Motor, 3/4 HP, 208/230V-1Ph, 5 Speed, 1075 RPM
Lennox 13H39 - Blower Motor, 3/4 HP, 208/230V-1Ph, 5 Speed, 1075 RPM
Lennox 13H39 - Blower Motor, 3/4 HP, 208/230V-1Ph, 5 Speed, 1075 RPM

Lennox 13H39 - Blower Motor, 3/4 HP, 208/230V-1Ph, 5 Speed, 1075 RPM

SKU
13H39
Brand:
Reviews (0)
$360.10
Out of stock

(special order is available)

SPECIAL REQUEST

Important Notice:

This is a special order item and will ship with a minimum lead time of 14 days.

Special order items are non-returnable and cannot be canceled once placed.

Please note: Pricing is not final and will be confirmed after we contact you.


Material Description: Nidec 13H3901 Motor, 3/4HP, 5 Speed, 208-230 Volts, 1075 RPM, 3.9-4.6 Amps
Product Height: 8.9 IN
Horsepower: 3/4 HP
Diameter: 5.63 IN
RPM Range: 1075
Gross Weight: 19.1 LB
Amperage (AMPs): 3.9/4.6A
Bearing Type: Sleeve
Hertz: 60 hz
Phase: 1 Phase
Core Product: No
Motor Type: PSC
RPM: 1075 RPM
Motor HP: 3/4 HP
Number of Speeds: 5 Speed
Frame Size: 48
Motor Mounting Position: Horizontal
Motor Mounting Type: Hub Rings
Motor Voltage: 208-230 VAC 1 Ph 60 Hz
Shaft Size: 1/2 x 2.2 IN
Capacitor Value: 20 MFD 370 VAC
Rotation: CCWLE
Bearing Type: Sleeve
Motor Type: PSC
Rotation: CCW/OSE
Speed: 5
Frame Size: 48 Frame
Lennox 13H39 - Blower Motor, 3/4 HP, 208/230V-1Ph, 5 Speed, 1075 RPM
The Lennox 13H39 blower motor is a high-performance replacement motor designed to deliver reliable airflow in residential and light commercial HVAC systems. Featuring a 3/4 HP output and operating at 208/230V single-phase, this motor supports five speed settings, allowing for optimal airflow control across various applications. With a standard 1075 RPM, it ensures consistent air movement for improved system efficiency and indoor comfort.
Engineered for durability and easy installation, the 13H39 motor is compatible with select Lennox air handlers and furnaces. Whether used in a new setup or as a replacement, it offers a dependable solution to restore proper system operation.

Key Features:
  • Motor Type: Blower Motor
  • Horsepower: 3/4 HP
  • Voltage: 208/230V, Single-Phase
  • Speed: 5-Speed Operation
  • Rotation Speed: 1075 RPM
  • Application: Lennox OEM Replacement
Upgrade your HVAC system with the trusted performance of the Lennox 13H39 blower motor—available now at Beenimax.com.
