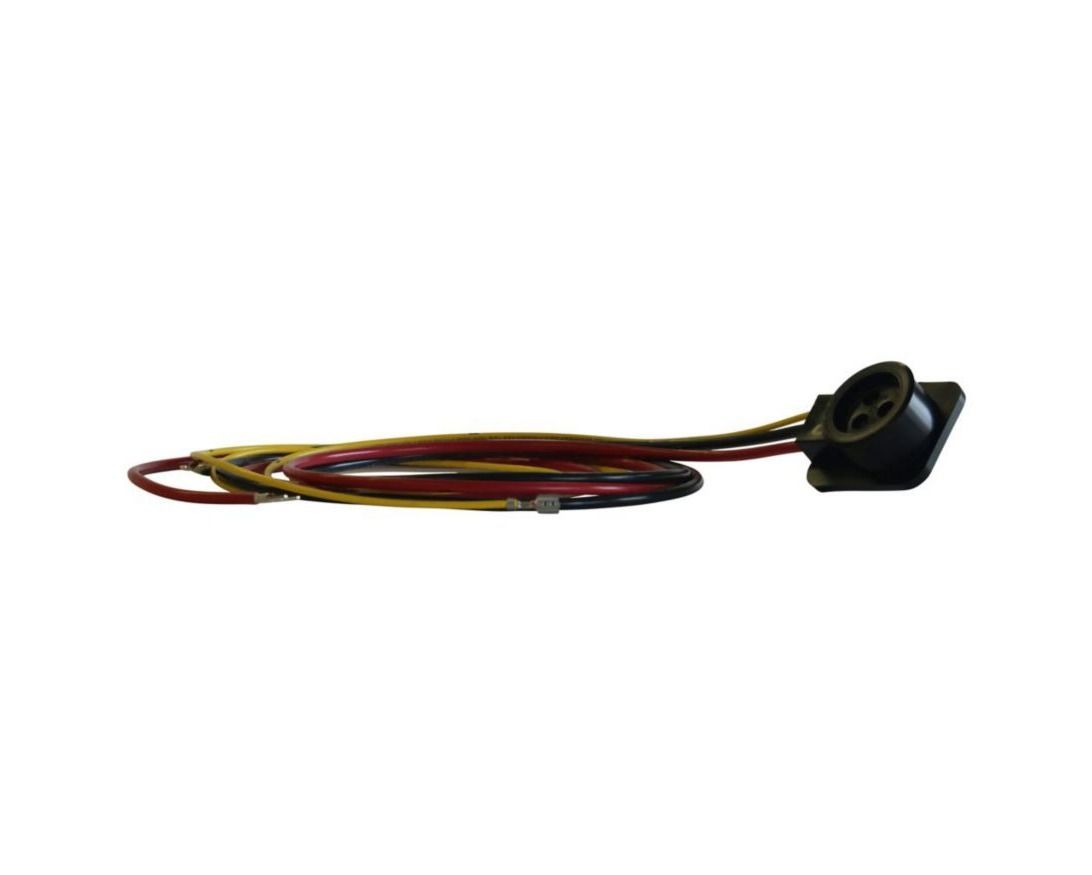

Lennox 13U63 – Lennox 104162-03 Compressor Plug Wiring Harness, 1-Phase, 56 Inch, 10/16/10 AWG, Black/Yellow/Red, OEM HVAC Replacement Part
Lennox 13U63 – Lennox 104162-03 Compressor Plug Wiring Harness, 1-Phase, 56 Inch, 10/16/10 AWG, Black/Yellow/Red, OEM HVAC Replacement Part
Lennox 13U63 – Lennox 104162-03 Compressor Plug Wiring Harness is a genuine OEM 1-phase wiring assembly designed for reliable compressor connections in Lennox HVAC systems. This 56-inch harness features durable 10/16/10 AWG conductors in black, yellow, and red for proper phase and start/run wiring configuration. Built to factory specifications, it ensures secure electrical contact, dependable performance, and safe operation of your air conditioning or heat pump compressor. Ideal for professional HVAC repairs and OEM replacements, this original Lennox compressor wiring harness guarantees proper fit, long service life, and system compatibility.
Lennox 13U63 – 104162-03 Compressor Plug Wiring Harness
OEM 1-Phase Compressor Electrical Harness, 56 Inch, 10/16/10 AWG, Black / Yellow / Red
Product Overview:
The Lennox 13U63 compressor plug wiring harness is a genuine OEM electrical component designed to provide secure and reliable power connections to single-phase compressors in Lennox HVAC systems. Manufactured to Lennox factory specifications under part number 104162-03, this 56 inch harness ensures proper electrical continuity, correct phase wiring, and long-term operational reliability.
This 1-phase compressor wiring harness features 10/16/10 AWG conductors in black, yellow, and red, allowing proper connection to run, start, and common terminals. Built for durability in demanding HVAC environments, it supports safe and stable compressor performance in air conditioning and heat pump systems.
If you are replacing a damaged, burnt, or brittle harness, using an original Lennox OEM wiring harness is critical to maintain system safety and performance.
Key Features:
• Genuine Lennox OEM part
• Part Number: 13U63
• Manufacturer Number: 104162-03
• Designed for single-phase compressors
• 56 inch overall harness length
• 10/16/10 AWG wire gauge configuration
• Color-coded conductors: Black, Yellow, Red
• Molded compressor plug connection
• Ensures proper electrical fit and secure terminal engagement
• Built for long-term durability in HVAC applications
Why OEM Wiring Harness Matters:
Electrical components are not universal. Wire gauge, insulation quality, terminal fitment, and connector integrity all directly impact compressor startup and run performance. Installing a non-OEM harness can lead to loose connections, overheating, voltage drop, or premature compressor failure.
The Lennox 13U63 harness is engineered specifically for Lennox equipment to ensure:
• Correct amperage handling
• Proper terminal alignment
• Reliable compressor startup
• Reduced risk of electrical faults
• Maintained manufacturer performance standards
Applications:
Used in select Lennox air conditioners and heat pump systems requiring the 104162-03 compressor plug harness. Always verify compatibility using the equipment model number before ordering.
